• Blackmagic Design ATEM SDI Pro ISO Switcher (Video Mixer)

    Blackmagic Design AT...

    18,835.00

    Product Highlights 4-Channel Live Stream 3G-SDI Switcher Program and 4 x Input ISO Recording Generates DaVinci Resolve Project Live Tally, Stream, and Record Status Record Button, Channel Preview Multiview 2-Channel Digital Audio Mixer per Source 3G-SDI Output, Ethernet ATEM Control Media Player, Computer Input Support Upstream and Downstream Keyers DVE Transition, Chroma/Luma Keyers Specs Blackmagic Design ATEM SDI Pro Specs Available M/E Layers 5 M/E Effect Types DVE, Transition, Chroma Key Generators 1 x Pattern2 x Color Audio Mixing 2-Channel Mixing Processing Switching Type IR Remote, Pushbutton, Software Input Number of Video Input Sources 4 Video Input Connectors 4 x BNC (3G-SDI) Input Video Format SDI (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 56/59.94/60 fps720p at 50/59.94/60 fps Audio Input Connectors 2 x 1/8″ / 3.5 mm TRS Stereo Analog Female Input Audio Format Analog Embedded Audio Input SDI: 2-Channel (per Input) Output Video Output Channels 3 Video Output Connectors 2 x BNC (3G-SDI)1 x USB Type-C Output Video Format SDI (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fpsUSB Type-C (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps Embedded Audio Output SDI Multiview Output None Connectivity Other I/O 1 x RJ45 Control Input/Output HDCP Support None Hardware OS Compatibility macOS 11macOS 12 or LaterWindows 10Windows 11*As of July, 2022: Check with manufacturer for the most up-to-date compatibility Power Connector 1 x Barrel (12 VDC) Input Power Consumption Device: 36 W Environmental Operating Temperature 41 to 104°F / 5 to 40°C Storage Temperature 14 to 140°F / -10 to 60°C Operating Humidity 0 to 90% (Non-Condensing) General Dimensions 9.35 x 4.67 x 1.38″ / 23.75 x 11.86 x 3.51 cm Weight 23.9 oz / 678 g Packaging Info Package Weight 2.355 lb Box Dimensions (LxWxH) 10.5 x 7.2 x 2.6″

  • Blackmagic Design ATEM SDI Switcher (Video Mixer)

    Blackmagic Design AT...

    6,695.00

    Product Highlights 4-Channel Live Stream 3G-SDI Switcher Input/Output up to 1080p60 10-Bit 4:2:2 2-Channel Digital Audio Mixer 2 x 3G-SDI Output, Ethernet ATEM Control Media Player, Computer Input Support Upstream and Downstream Keyers DVE Transition, Chroma/Luma Keyers Color and Pattern Generators USB Type-C Streaming/Webcam Output Specs Blackmagic Design ATEM SDI Specs Available M/E Layers 5 M/E Effect Types DVE, Transition, Chroma Key Generators 1 x Pattern2 x Color Audio Mixing 2-Channel Mixing Processing Switching Type IR Remote, Pushbutton, Software Input Number of Video Input Sources 4 Video Input Connectors 4 x BNC (3G-SDI) Input Video Format SDI (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 56/59.94/60 fps720p at 50/59.94/60 fps Audio Input Connectors 2 x 1/8″ / 3.5 mm TRS Stereo Analog Female Input Audio Format Analog Embedded Audio Input SDI: 2-Channel (per Input) Output Video Output Channels 3 Video Output Connectors 2 x BNC (3G-SDI) (Program) Output Video Format SDI (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fpsUSB Type-C (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps Embedded Audio Output SDI Multiview Output None Connectivity Other I/O 1 x RJ45 Control Input/Output HDCP Support None Hardware OS Compatibility macOS 11macOS 12 or LaterWindows 10Windows 11*As of July, 2022: Check with manufacturer for the most up-to-date compatibility Power Connector 1 x Barrel (12 VDC) Input Power Consumption Device: 18 W Environmental Operating Temperature 41 to 104°F / 5 to 40°C Storage Temperature 14 to 140°F / -10 to 60°C Operating Humidity 0 to 90% (Non-Condensing) General Dimensions 9.35 x 4.67 x 1.38″ / 23.75 x 11.86 x 3.51 cm Weight 23.9 oz / 678 g Packaging Info Package Weight 2.23 lb Box Dimensions (LxWxH) 11.2 x 7.9 x 2.6″

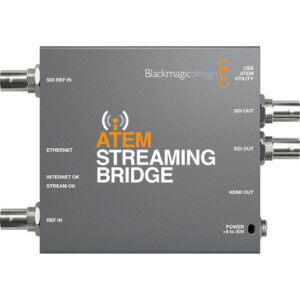

  • Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers

    Blackmagic Design AT...

    5,950.00

    Product Highlights For Any ATEM Mini Pro Streaming Switcher HDMI and SDI Outputs Up to 1080p60 Resolution Output Direct, Network, and Internet Connection IP Addressable, Software Controllable   Specs Blackmagic Design Atem Streaming Bridge Specs Inputs / Outputs Audio Inputs No Video Outputs 2x BNC (3G-SDI)1x HDMI (1.4) Audio Outputs No Other I/O 1x RJ452x BNC Reference Expansion Slots No Format Support Output Video Format HDMI1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i 50/59.94/60 fpsSDI (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i 50/59.94/60 fps Standards Video Standard Compliance SMPTE 259M/292M/296M/424M-B/425M-A/425M-B IP Streaming Video IP Decoding H.264: 1920 x 1080 Power Power I/O 1x Barrel (6 to 30 VDC ) Input Power Consumption Device: 6 W Environmental Operating Temperature 32 to 72°F / 0 to 40°C Storage Temperature -4 to 140°F / -20 to 60°C Operating Humidity 0 to 90% (Recommended) General Certifications CE, FCC, Kcc Dimensions 5.28 x 3.63 x 0.9″ / 13.41 x 9.22 x 2.29 cm Weight 8.1 oz / 230 g Packaging Info Package Weight 1.07 lb Box Dimensions (LxWxH) 5.8 x 5.5 x 2.7″

  • Blackmagic Design ATEM Television Studio HD8

    Blackmagic Design AT...

    67,599.00

    Product Highlights 8-Input 3G-SDI 1080p60 Live Switcher Redesigned Buttons and Layout Streaming Support, USB & M.2 Recording Blackmagic Cloud Integration Webcam Support, Runs Blackmagic OS Up to 16 Multiview Output Sources Audio Mixing, Transitions, T-Bar, AUX Customizable Electronic LCDs Studio Camera Control Timecode, MADI, Talkback   Specs Blackmagic Design ATEM HD8 Specs Available M/E Layers 4 M/E Effect Types 1 x DVE, Stinger4 x Chroma Key7 x Luma Key Downstream Keys 2 x Chroma, Luma, DVE Generators 7 x Pattern2 x Color Audio Mixing 58-Channel Mixing Processing Switching Type Pushbutton, Software, T-Bar Processing Resolution 1080p at 60 Color Processing 10-Bit 4:2:2 RGB Input Number of Video Input Sources 8 Video Inputs 8 x BNC (3G-SDI) Female Input Video Format SDI (10-Bit 4:2:2 RGB)1080p at 23.98/24/25/29.97/30/50/60 fps1080i at 50/59.94/60 fps720p 50/59.94/60 fps Audio Inputs 1 x BNC MADI Female1 x 2RCA Stereo Analog Female2 x XLR 3-Pin Analog Female1 x XLR 5-Pin Female Embedded Audio Input SDI Output Video Output Channels 8 Video Outputs 8 x BNC Output Video Format SDI (10-Bit 4:2:2 RGB)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 50/59.94/60 fps720p at 50/59.94/60 fps Audio Outputs 2 x 1/4″ TRS Stereo Analog Female Embedded Audio Output SDI Multiview Output 16-Way Multiview Monitor Output 1 x HDMI Connectivity Other I/O 1 x BNC Reference Input1 x BNC Reference Output1 x BNC Timecode1 x BNC Timecode4 x RJ45 LAN Input/Output1 x RJ45 Talkback Input/Output1 x RJ12 Remote Input/Output2 x USB-C Output Video Standard Compliance SMPTE 292M/296M/424M/425M-A/425M-B IP Video H.264:1920 x 1080 at 60p Encoding Transport Protocols RTMP, TCP/IP Hardware OS Compatibility macOS 12 to 13 or LaterWindows 10 to 11*As of February, 2023: Check with manufacturer for the most up-to-date compatibility Wi-Fi None Bluetooth None Power I/O 1 x IEC C14 (100 to 240 VAC) Input1 x XLR 4-Pin (12 VDC) Input Power Consumption Device: 100 W Environmental Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -4 to 140°F / -20 to 60°C Operating Humidity 0 to 90% Storage Humidity 0 to 90% General Dimensions 23 x 14.8 x 6.35″ / 58.4 x 37.6 x 16.13 cm Weight 14.9 lb / 6.8 kg

  • Blackmagic Design DeckLink Duo 2

    Blackmagic Design De...

    11,299.00

    Product Highlights SD/HD/3G-SDI Input/Output PCI-E Interface 1080p 4:4:4 by Single-Link 3G-SDI 10/12-Bit Processing Specs Blackmagic Design Duo 2 Specs Host Connection PCIe x4 (PCIe 2.0) Input Video Input Connectors 4 x BNC (12G-SDI) Female Input Video Format SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)1080p: 23.98/24/25/29.97/30/50/59.94/60 fps1080PsF: 23.98/24/25/29.97/30 fps1080i: 50/59.94/60 fps720p: 50/59.94/60 fpsPAL: 50 fpsNTSC: 60 fps Audio Input Connectors None Input Audio Format Analog: 48 kHz / 24-Bit Embedded Audio Input SDI: 16-Channel Standards Video Standard Compliance SMPTE 259M/292M/296M/372M/425MITU -R BT.601/BT.656 Connectivity Other I/O 1 x BNC Blackburst, Reference, Tri-Level Sync Input Hardware OS Compatibility Windows 7 or LatermacOS 10.14 or LaterLinux Power Power Consumption 10 W General Certifications C-Tick, CE, FCC, as per Manufacturer Dimensions 3.7″ / 9.4 cm Weight 5.64 oz / 160 g Warranty Length Limited 3-Year Warranty Packaging Info Package Weight 0.54 lb Box Dimensions (LxWxH) 5.65 x 5.55 x 1.2″

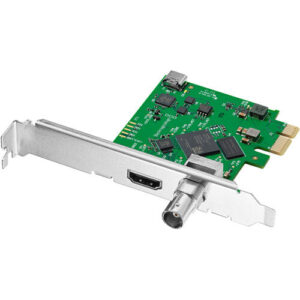

  • Blackmagic Design DeckLink Mini Recorder HD

    Blackmagic Design De...

    2,595.00

    Product Highlights Broadcast-Quality Recording 1-Lane PCIe Slot Card (for 1-16 Lanes) SDI and HDMI Inputs Supports up to 2K DCI over SDI Up to 1080p60 Resolution Support in HDMI 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4 REC 601/709 Color Space Support Mac, Windows, and Linux Compatible Specs Blackmagic Design Mini Recorder HD Specs Inputs / Outputs System Connection (Length Unspecified) Video Inputs 1x BNC (3G-SDI)1x HDMI (2.0) Audio Inputs No Simultaneous Multi-Input Support Not Specified by Manufacturer Format Support Input Video Format SDI (8/10/12-Bit 4:4:4 RGB)1080p at 23.98/24/25/29.97/30 fps720p at 50/59.94/60 fps576i / 625 lines at 50 fps480i / 525 lines at 59.94 fpsSDI (8/10-Bit 4:2:2 YUV)DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fpsDCI 2KPsF at 23.98/24/25/29.97/30 fps1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080PsF at 23.98/24/25/29.97/30 fps1080i at 50/59.94/60 fps576i / 625 lines at 50 fps480i / 525 lines at 59.94 fpsHDMI (8-Bit 4:4:4 RGB, YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 50/59.94/60 fps720p at 50/59.94/60 fps576i / 625 lines at 50 fps480i / 525 lines at 59.94 fpsHDMI (12-Bit 4:4:4 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 50/59.94/60 fps720p at 50/59.94/60 fps576i / 625 lines at 50 fps480i / 525 lines at 59.94 fps Embedded Audio SDI: 16-ChannelHDMI: 8-Channel Standards Video Standard Compliance SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1 HDR Support Not Specified by Manufacturer Hardware OS Compatibility macOS 11.1macOS 12.0 or LaterWindows 10Windows 11Linux Power Consumption Device: 3 W Environmental Operating Temperature 37 to 72°F / 5 to 40°C Storage Temperature -4 to 113°F / -20 to 45°C Operating Humidity 0 to 90% () Storage Humidity 0 to 90% (Non-Condensing) General Dimensions 3.62″ / 91.95 mm Weight 1.98 oz / 56 g Packaging Info Package Weight 0.29 lb Box Dimensions (LxWxH) 5.6 x 5.3 x 1.2″

  • Blackmagic Design Decklink SDI 4K Capture & Playback Card

    Blackmagic Design De...

    6,799.00

    Product Highlights SD/HD/3G/6G-SDI Input/Output PCIe Interface UHD / DCI 4K 4:2:2 by Single-Link 6G-SDI 1080p 4:4:4 by Single-Link 3G-SDI 10-Bit Processing RS-422 Deck Control Internal Keying Reference Input Down/Up/Cross Conversions Mac OS X, Windows, and Linux Compatible Specs Blackmagic Design SDI Specs Host Connection PCIe x1 (PCIe 1.0) Input Video Input Connectors 1 x BNC (6G-SDI) Input Video Format SDI (10-Bit 4:4:4/4:2:2)PAL: 50 fpsNTSC: 59.94 fps720p: 50/59.94/60 fps1080p: 23.98/24/25/30/50/59.94/60 fps1080PsF: 23.98/24/25/29.97/30 fps1080i: 50/59.94/60 fpsUHD 4K: 23.98/24/25/29.97/30 fpsDCI 4K: 23.98/24/25 fpsDCI 2K: 23.98/24/25 fps Output Video Output Connectors 1 x BNC (6G-SDI) Output Video Format SDI (10-Bit 4:4:4/4:2:2)PAL (768 x 576): 50 fpsNTSC: 59.94 fps720p: 50/59.94/60 fps1080p: 23.98/24/25/30/50/59.94/60 fps1080PsF: 23.98/24/25/29.97/30 fps1080i: 50/59.94/60 fpsUHD 4K: 23.98/24/25/29.97/30 fpsDCI 4K: 23.98/24/25 fpsDCI 2K: 23.98/24/25 fps Standards Video Standard Compliance SMPTE 259M/292M/296M/372M/425M/ST-2081ITU -R BT.601/BT.656 HDCP Support None Environmental Operating Temperature 41 to 104°F / 5 to 40°C Storage Temperature -4 to 113°F / -20 to 45°C General Certifications C-Tick, CE, FCC, as per Manufacturer Dimensions 3.75″ / 9.53 cm Weight 4.5 oz / 128 g Warranty Length Limited 3-Year Warranty Packaging Info Package Weight 0.45 lb Box Dimensions (LxWxH) 5.5 x 5.3 x 1.1″

  • Sale! Blackmagic Design Focus Demand

    Blackmagic Design Fo...

    Original price was: ₵6,549.00.Current price is: ₵5,999.00.

    Product Highlights For Studio 4K Plus and Studio 4K Pro Dual USB Connections   Specs Blackmagic Design Focus Demand Specs Control Control Features Focus Control Compatible Cameras Blackmagic Design tudio 4K Plus/Pro Connectivity Control Input 2 x USB-C Mounting Attachment Method ARRI/Hirth Rosette Packaging Info Package Weight 1.97 lb Box Dimensions (LxWxH) 10.6 x 6 x 5.1″

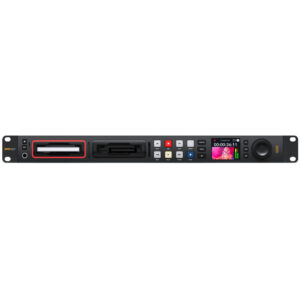

  • Blackmagic Design HyperDeck Studio 4K Pro

    Blackmagic Design Hy...

    36,855.00

    Product Highlights 1 RU File-Based Video Recorder Uncompressed & H.264/H.265 10-Bit 4:2:2 Records Compressed in ProRes / DNxHD 1 x 12G-SDI Input, 2 x 12G-SDI Outputs 2 x 2.5″ SSD Slots & 2 x SD Card Slots 1 x HDMI Input, 1 HDMI Output 1 x SDI Loop Output, 1 x USB Type-C Out Speaker, Remote, 10G Ethernet Port Front-Panel Buttons, Jog Wheel, LCD Timecode, Reference & RS-422 In/Out Specs Blackmagic Design HyperDeck Studio 4K Pro Specs Video Input 1 x BNC 12G-SDI1 x HDMI 2.0 Video Output 1 x BNC SDI Loop-Through2 x BNC 12G-SDI1 x SDI Monitor Output1 x HDMI 2.0 Embedded Audio Input:16 x Channels SDI16 x Channels HDMIOutput:8 x Channels SDI8 x Channels HDMI Audio Output Connector 1 x 1/4″ Headphone Jack Network 1 x RJ45, 10 Gb/s SSD Interface 2 x 2.5″ SATA 3 Gb/s Reference Input 1 x BNC Reference Output 1 x BNC Timecode Input 1 x BNC Timecode Output 1 x BNC Device Control 1 x RS-422 Input1 x RS-422 Output Display Size 2.2″ LCD Speaker Mono Format Support DCI/UHD 4K 2160p: 30/29.97/25/24/23.982K 1440p: 30/29.97/25/24/23.981080p: 60/50/30/29.97/25/24/23.981080PsF: 30/29.97/25/24/23.981080i: 60/59.94/50720p: 60/59.94/50NTSC/PAL525i 59.94625i 50480p60 and 576p50 via HDMI Only Supported Operating Systems macOS 10.15 CatalinamacOS 11.1 Big Sur or LaterWindows 10, 64-Bit Other Outputs 1 x USB 3.1 Gen 2 Type-C for External Recording or Webcam Use SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084, and SMPTE 2108-1 SDI Metadata Support HD RP188 and closed captioning CEA-708HDR Metadata Supported on SDI Sampling Video: 4:2:2 YUVAudio: 24-Bit, 48 kHz Color Precision 10-Bit Color Space REC 601, REC 709, REC 20203D LUTS can be Applied to SDI Monitor Out Multiple Rate Support Autodetection of SD, HD, 6G-SDI, and 12G-SDI HDR Support Hybrid Log Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 Codecs Supported ProRes HQ QuickTimeProRes 422 QuickTimeProRes LT QuickTimeProRes Proxy QuickTime for all Formats up to 2160p30Playback Only of:ProRes 4444 QuickTime up to 1080p60 with Auto Routing of Fill and Key over SDI A and B OutputsDNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD Formats up to 60 fpsDNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p Formats up to 30 fpsH.265 SDI 4:2:2 10-Bit, H.265 High 4:2:0 10-Bit, H.265 Medium 4:2:0 10-Bit, H.265 Low 4:2:0 10-Bit for all 2160p Formats up to 60 fpsH.264 SDI 4:2:2 10-Bit, H.264 High 4:2:0 8-Bit, H.264 Medium 4:2:0 8-Bit, H.264 Low 4:2:0 8-Bit for all Progressive formats up to 1080p60 Media Slots 2 x 2.5″ SSD2 x SD Card Rack Size 1 RU Power Input 1 x 110 to 240 VAC, 50/60 Hz Power Input1 x 12 VDC, 4-Pin XLR Input Power Consumption 100 W Maximum Operating Temperature 32to 104°F/ 0 to 40°C Storage Temperature -4 to 140°F / -20 to 60°C Relative Humidity 0 to 90% Non-Condensing Dimensions 19 x 9.3 x 1.74″ / 48.3 x 23.6 x 4.4 cm Weight 5.57 lb / 2.5 kg
