Showing 28–36 of 55 results
-
₵11,699.00
Product Highlights 1 x 3G-SDI Input 1 x HDMI and 1 x 3G-SDI Outputs Records ProRes, DNxHD, and H.264 Records in H.264 SDI 4:2:2 10-Bit Front-Panel Buttons, Jog Wheel, LCD Timecode and Reference Input/Output 1/3 Rack-Mountable Form Factor USB Type-C, 1G Ethernet, RS-422 Specs Blackmagic Design HyperDeck Studio HD Mini Specs Connectivity Video Input 1 x BNC, 3G-SDI Video Output 1 x BNC, 3G-SDI1 x HDMI Type A1 x USB Type-C (Webcam or External Recording of SD, HD, 2K) Timecode In: 1 x BNCout: 1 x BNC Reference Tri-Sync or Black BurstInput Connector: 1 x BNCOutput Connector: 1 x BNC Audio Input None (Embedded Audio Only, 16 Channels) Audio Output None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI) Device Control 1 x RS-422 Deck Control Port on DB9 Female Ethernet 1 x RJ45 for Remote Operation Media Interface 2 x SD SlotsMedia Type: UHS I and UHS IIFormat: ExFAT or HFS+ Standards Supported Resolutions 2K2048 x 1080p: 30/29.97/25/24/23.98HD1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.981920 x 1080i: 60/59.94/501280 x 720p: 60/59.94/50SDNTSCPAL SDI Compliance SMPTE 259M//292M/296M/372M/424M/425M Level A and BSMPTE 2084SMPTE 2108‑1 SDI Metadata Support HD RP188 and Closed Captioning CEA‑708HDR Metadata Supported on SDI Video Sampling 4:2:2 YUV Color Depth 10-Bit Color Space REC 601REC 709REC 2020 HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 Multi Rate Support Autodetection of SD and HD Audio Sampling Television Standard 48 kHz, 24-Bit Supported Codecs ProRes HQ QuickTime 422 QuickTime LT QuickTime Proxy QuickTime for Formats up to 1080p60 DNxHD 220x 220x MXF 145 145 MXF 45 45 MXF for 720p and 1080p HD Formats up to 60 fps ¿H.264 SDI 4:2:2 10-Bit High 4:2:0 8-Bit Medium 4:2:0 8-Bit Low 4:2:0 8-Bit for Progressive Formats up to 1080p60 System Requirements Operating System macOS: 10.15(Catalina), 11.5 (Big Sur) or LaterWindows: 10 64-Bit General Rack Height 1 RU Power Supply AC100 to 240 VAC, 50/60 HzDC12 VDC; 1 x Locking 5.5 mm Barrel Operating Temperature 41 to 122°F / 5 to 50°C Storage Temperature -4 to 113°F / -20 to 45°C Relative Humidity 0 to 90% Non-Condensing Dimensions 6.96 x 5.51 x 1.74″ / 17.68 x 14 x 4.42 cm Weight 1.8 lb / 0.82 kg
-
₵16,295.00
Product Highlights Records up to 4K DCI at 30 fps Plays Back up to 3840 x 2160 at 30 fps 1 x 6G-SDI Input, 1 x HDMI 2.0 Input 1 x HDMI 2.0 and 2 x 6G-SDI Outputs Records ProRes, DNxHD, and H.264 Records in H.264 SDI 4:2:2 10-Bit Front-Panel Buttons, Jog Wheel, LCD Timecode and Reference Input/Output 1/3 Rack-Mountable Form Factor USB Type-C, 1G Ethernet, RS-422 Specs Blackmagic Design HyperDeck Studio HD Plus Specs Connectivity Video Input 1 x BNC, 6G-SDI1 x HDMI 2.0 Type A Video Output 1 x BNC, 6G-SDI Loop-Out2 x BNC, 6G-SDI1 x HDMI Type A, 2.01 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI)1 x BNC, 3G-SDI (Monitor Out) Timecode In: 1 x BNCOut: 1 x BNC Reference Tri-Sync or Black BurstInput Connector: 1 x BNCOutput Connector: 1 x BNC Audio Input None (Embedded Audio Only, 16 Channels) Audio Output Headphone: 1 x 1/4″ Phone Device Control 2 x RS-422 Deck Control Port on DB9 Female Ethernet 1 x RJ45 for Remote Operation Media Interface 2 x SD SlotsMedia Type: UHS I and UHS IIFormat: ExFAT or HFS+ Standards Supported Resolutions 4K4096 x 2160p: 30/29.97/25/24/23.983840 x 2160p: 30/29.97/25/24/23.982K2048 x 1080p: 0/29.97/25/24/23.98HD1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.981920 x 1080i: 60/59.94/501280 x 720p: 60/59.94/50SDNTSCPAL SDI Compliance SMPTE 259M//292M/296M/372M/424M/425M Level A and BSMPTE 2084SMPTE 2108‑1 SDI Metadata Support HD RP188 and Closed Captioning CEA‑708HDR Metadata Supported on SDI Video Sampling 4:2:2 YUV Color Depth 10-Bit Color Space Rec. 601Rec. 709Rec. 202033-Point 3D LUTS Can Be Applied to SDI Monitor Out HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 Multi Rate Support Autodetection of SD, HD, and 6G-SDI Audio Sampling Television Standard 48 kHz, 24-Bit Supported Codecs ProResHQ QuickTime422 QuickTimeLT QuickTimeProxy QuickTime for Formats up to 1080p60DNxHD220x220x MXF145145 MXF4545 MXF for 720p and 1080p HD Formats up to 60 fpsH.264SDI 4:2:2 10-BitHigh 4:2:0 8-BitMedium 4:2:0 8-BitLow 4:2:0 8-Bit for Progressive Formats up to 1080p60 System Requirements Operating System macOS: 10.15 (Catalina), 11.5 (Big Sur) or LaterWindows: 10 64-Bit General Rack Height 1 RU Power Supply AC100 to 240 VAC, 50/60 HzDC12 VDC; 1 x 4-Pin XLRConsumption100 W Max Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -4 to 140°F / -20 to 60°C Relative Humidity 0 to 90% Non-Condensing Dimensions 8.27 x 6.96 x 1.74″ / 21.01 x 17.68 x 4.42 cm Weight 1.8 lb / 0.82 kg
-
₵4,982.00

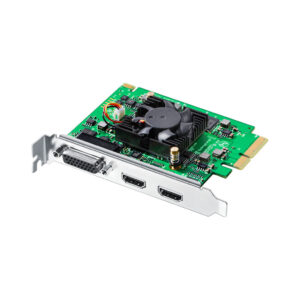

Product Highlights Capture & Playback in Ultra HD at 30 fps Capture 1080p at 60 fps 4-Lane PCIe Card for 4, 8, 16 Lane Slots HDMI 1.4b Standard Ingest HDMI, YUV, S-Video, and NTSC/PAL Save Video Compressed or Uncompressed Capture Directly to Popular NLEs Output to High Resolution HDTVs Connect Cameras for Live Streaming Create 60 fps Gameplay Walk-Throughs Specs Blackmagic Design Intensity Pro Specs Host Connection PCIe x4 (PCIe 4.0) Input Video Input Connectors 1 x HDMI (HDMI 1.4b) Female Input Video Format HDMI (8/10-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)720p: 50/59.94/60 fps1080p: 23.98/24/25/29.97/50/59.94/60 fps1080i: 50/59.94/60 fpsUHD 4K: 23.98/24/25/29.97/30 fpsSDIPAL: 50 fpsNTSC: 59.94 fps Input Audio Format Analog: 48 kHz / 24-Bit Output Video Output Connectors 1 x HDMI (HDMI 1.4b) Female Output Video Format HDMI (8/10-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)720p: 50/59.94/60 fps1080p: 23.98/24/25/29.97/30/50/59.94/60 fps1080i: 50/59.94/60 fpsUHD 4K: 23.98/24/25/29.97/30 fpsSDIPAL (768 x 576): 50 fpsNTSC: 59.94 fps Output Audio Format Analog: 48 kHz / 24-Bit Hardware OS Compatibility Windows 8.1Windows 10macOS 10.14 or LaterLinux Power Consumption Device: 17 W Environmental Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -4 to 113°F / -20 to 45°C General Certifications C-Tick, CE, FCC, as per Manufacturer Dimensions 3.42″ / 86.87 mm Weight 0.22 lb / 0.1 kg Warranty Length Limited 12-Month Warranty Packaging Info Package Weight 0.77 lb Box Dimensions (LxWxH) 5.6 x 5.45 x 2.15″
-
₵1,360.00

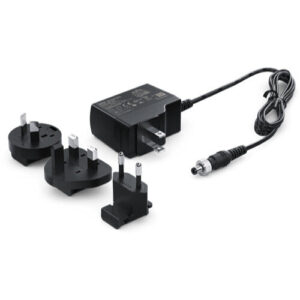

Product Highlights AC/DC Power Adapter for Video Assist 12G Locking Barrel Connector Provides 12 VDC, 36W Power Set of Three International Plug Adapters Specs Blackmagic Design PSUPPLY-12V36WLOCK Specs Connectors 1 x Locking Barrel1 x US Wall Plug3 x International Plug Adapters Power 12 VDC, 36 W Packaging Info Package Weight 0.485 lb Box Dimensions (LxWxH) 6.3 x 4 x 2.9″
-
₵1,455.00
Product Highlights Converts SDI to HDMI & HDMI to SDI Simultaneous Conversions 1 x Input & 1 x Output SD/HD/3G-SDI 1 x Input & 1 x Output HDMI Specs Blackmagic Design CONVBDC/SDIHDWPSU Specs Connections Video Input 1 x 3G/HD/SD-SDI1 x HDMI type A Video Output 1 x 3G/HD/SD-SDI1 x HDMI type A Other I/O 1 x Micro-USB Standards Supported Video Standards SDI:1080p: 60/59.94/50/30/29.97/25/24/23.981080i: 60/59.94/50720p: 60/59.94/50NTSC SD: 525i 59.94PAL SD: 625i 50HDMI:1080p: 60/59.94/50/30/29.97/25/24/23.981080i: 60/59.94/50720p: 60/59.94/50NTSC SD: 525i 59.94PAL SD: 625i 50 SDI Compliance SMPTE 425M/424M/372M/296M/292M/259M Color Precision SDI: 4:2:2HDMI: 4:2:2 SDI Color Space SDI: YUVHDMI: YUV Operating System Supported Operating Systems MacOS 10.12 SierraMacOS High Sierra 10.13 or laterWindows 8.1Windows 10 Power Power Consumption 2.5 W Operational Voltage Range 4.4 to 5.25 VDC Physical & Environmental Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -4 to 140°F / -20 to 60°C Relative Humidity 0 to 90%, non-condensing Dimensions 3.18 x 2.32 x 0.98″ / 8.1 x 5.9 x 2.5 cm Weight 6.13 oz / 174 g Packaging Info Package Weight 0.85 lb Box Dimensions (LxWxH) 5.75 x 4.85 x 2.75″
-
₵1,199.00

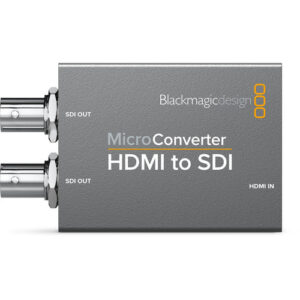

Product Highlights HDMI Input 2 x SDI Outputs Supports SD and HD Signals Automatic Input Signal Detection Specs Blackmagic Design HDMI TO SDI Specs I/O 1 x HDMI type A input2 x SD/HD/3G-SDI BNC output1 x micro-USB Format Support 1080p24/25/29.97/30/50/59.941080i50/59.94/60720p50/59.94/60NTSCPAL SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M Color Precision 4:2:2 Color Space YUV and RGB OS Support Mac OS X 10.10, 10.11 or laterWindows 8.1, 10 Power Power input: 5 VDC via USB Micro-BPower consumption: 2.0 WOperational voltage range: 4.4 to 5.25 VDC Environmental Operating temperature: 32 to 104°F / 0 to 40°CStorage temperature: -4 to 140°:F / -20 to 60°CRelative humidity: 0 to 90% non-condensing Dimensions 3 x 1.8 x 1″ / 76 x 46 x 25 mm Weight 5.3 oz / 150 g Packaging Info Package Weight 0.785 lb Box Dimensions (LxWxH) 5.75 x 4.1 x 2.75″
-
₵1,265.00
Product Highlights SD/HD/3G-SDI Input HDMI and SDI Loop Outputs Supports SD and HD Signals Automatic Input Signal Detection Specs Blackmagic Design SDI To HDMI Converter Specs I/O 1 x SD/HD/3G-SDI BNC input1 x SD/HD/3G-SDI BNC loop output1 x HDMI type A output1 x USB Micro-B Format Support 1080p24/25/29.97/30/50/59.941080PsF25/29.97/301080i50/59.94/60720p50/59.94/60NTSCPAL SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M Color Precision 4:2:2 Color Space YUV and RGB OS Support Mac OS X 10.10, 10.11 or laterWindows 8.1, 10 Power Power input: 5 VDC via USB Micro-BPower consumption: 1.6 WOperational voltage range: 4.4 to 5.25 VDC Environmental Operating temperature: 32 to 104°F / 0 to 40°CStorage temperature: -4 to 140°F / -20 to 60°CRelative humidity: 0 to 90% non-condensing Dimensions 3 x 1.8 x 1″ / 76 x 46 x 25 mm Weight 5.3 oz / 150 g Packaging Info Package Weight 0.825 lb Box Dimensions (LxWxH) 5.8 x 4.25 x 2.85″
-
₵3,499.00

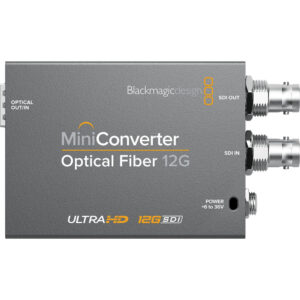

Product Highlights NOTE: SFP Module Not Included Bidirectional, multi-rate SDI to optical fiber conversion Supports video signals up to DCI 4K25 and UHD 4K60 Automatic signal detection Supports up to 16-channel embedded audio Change settings with function switches or the macOS/Windows-compatible software Universal power supply with locking connector Rugged, compact metal housing One SMPTE optical fiber SFP socket (requires separate module) 12G/6G/3G-SDI input and output Specs Blackmagic Design CONVMOF12G Specs Input Video Input Connectors 1 x BNC (12G-SDI) Input Video Format SDI (4:4:4/4:2:2 RGB, YUV)DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps Embedded Audio Input SDI: 16-Channel Output Video Output Connectors 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI) Output Video Format SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps Embedded Audio Output SDI: 16-Channel Standards Video Standard Compliance SMPTE 259M/292M/296M/297M/424M-B/425M/ST-2081ITU -R BT.601 HDCP Support None Connectivity Expansion Slots 1 x SFP Slot Power Power Connector 1 x Barrel (6 to 36 VDC) Input Power Consumption Power Supply: 2 W Environmental Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -4 to 113°F / -20 to 45°C Operating Humidity 0 to 90% General Dimensions 4.33 x 2.32 x 0.9″ / 109.98 x 58.93 x 22.86 mm Weight 7.4 oz / 210 g Packaging Info Package Weight 0.925 lb Box Dimensions (LxWxH) 5.8 x 4.7 x 2.75″
-
₵3,995.00

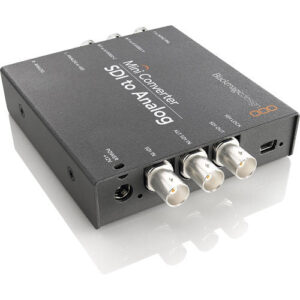

Product Highlights SDI to Analog Conversion Specs Blackmagic Design CONVMASA Specs Input (1) SDI (switchable between SD, HD & 3Gbs SDI) Output (1) component, NTSC, PAL, and S-video(1) SDI (switchable between SD, HD & 3Gbs SDI) Audio Analog:(2) channels of professional balanced analog with standard 1/4″ jack connectionsDigital:(2) channels of professional balanced digital with standard 1/4″ jack connections, AES/EBU standard Power 12VDC Dimensions Not specified by manufacturer Weight Not specified by manufacturer Packaging Info Package Weight 1.155 lb Box Dimensions (LxWxH) 5.85 x 5.6 x 2.65″
