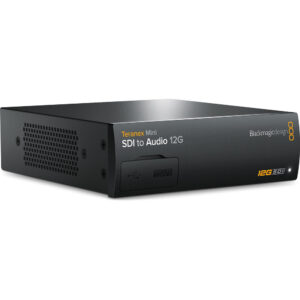

Product Highlights Advanced High-Data Rate De-Embedder De-Embed Audio from up to 4K SDI Signals Output via XLR, AES/EBU, RCA, or S/PDIF 12G-SDI Input and Output Supports up to Full 4K DCI 4096x2160p XLR Connections Switchable to AES/EBU Ethernet Port for Remote Control or PoE Supports Optional LCD Smart Front Panel Intelligent Thermal Heat Dissipation 3 Units 1U Rack-Mountable in 19″ Rack   Specs Blackmagic Design Teranex Mini Specs SDI Video Input 1x 12G-SDI SD/HD/2K/4K auto switching SDI Video Output 1x 12G-SDI output Analog Audio Output 2 channels professional balanced analog audio via XLR connectors2 channel unbalanced analog line level via RCA connectorsRight XLR can be configured for timecode output AES/EBU Audio Output 4 channels professional 110 ohm balanced digital audio via XLR connectorsRight XLR can be configured for timecode output Optical Audio Output S/PDIF signal with TOSLINK connector Multi Rate Support Automatic switching between SD/HD/2K and 4K Updates and Configuration USB or Ethernet Re-Clocking Yes SD Format Support 525/29.97 NTSC, 625/25 PAL HD Format Support 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60 2K Format Support 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25 4K Format Support 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60 SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036 SDI Video Rates SDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit SDI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K SDI Color Space REC 601, REC 709 Software Control Mac OS X and Windows software upgrade via USB and Ethernet Internal Software Upgrade Via included updater application Basic Settings Control Mini Switches, USB, and Ethernet via free software utility Power Supply 1x built-in international AC power supply with IEC C14 inletIEC power cable required (not included)90 – 240 VAC input Power Over Ethernet Can be powered via 48 VDC using PoE (Power-over-Ethernet) Power Consumption 15 W Operational Voltage Range 90 – 240 VAC Operating Temperature 32 to 104°F (0 to 40°C) Storage Temperature -4 to 140°F (-20 to 60°C) Relative Humidity 0 to 90% non-condensing Dimensions W x H x D: 5.5 x 1.8 x 6.7″ (14 x 4.6 x 17 cm) (with SDI port included) Weight 1.3 lb (0.6 kg) Packaging Info Package Weight 1.85 lb Box Dimensions (LxWxH) 8.819 x 7.638 x 2.205″

Product Highlights 1920 x 1200 7″ Touchscreen LCD HDMI & 3G-SDI Video Inputs/Outputs Records up to 1080p60 Video Stores to 2 x SDXC/SDHC Memory Cards 5mm LANC Port for Record Start & Stop Waveform, Vectorscope & Histogram Focus Peaking, False Color & Zebra 11 x Display Language Options Dual Sony L-Series Type Battery Slots (Battery Not Included) AC Adapter Included Specs Blackmagic Design Video Assist HD 7inch  Display Panel Type LCD Display Size 7.0″ / 17.8 cm Screen Resolution 1920 x 1200 Aspect Ratio 16:9 Viewing Angle Horizontal: 135° Touchscreen Yes Maximum Brightness 310 cd/m2 Pixels Per Inch (ppi) 323 ppi Color Gamut 100% Rec. 709 Real-Time LUT Monitoring SDR Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra I/O Video 1 x HDMI Type A Input1 x BNC (3G-SDI/HD-SDI/SD-SDI) Input1 x HDMI Type A Output1 x BNC (3G-SDI/HD-SDI/SD-SDI) Output HDCP Support Yes Embedded Audio HDMI: 8-ChannelSDI: 16-Channel Audio 2 x Mini-XLR Input1 x 3.5 mm Headphone Output Built-In Speaker 1 Power 1 x Barrel (12 VDC) Input Other I/O 1 x USB Type-C1 x LANC (2.5 mm) Input Card Slot 2 x SD Wi-Fi None Format Support Video Format SDI (10-Bit 4:2:2 YUV)1080p: 60/59.94/50/30/29.97/25/24/23.981080PsF: 30/29.97/25/24/23.981080i: 60/59.94/50720p: 60/59.94/50576i: 50480i: 59.94HDMI (10-Bit)1080p: 60/59.94/50/30/29.97/25/24/23.981080i: 60/59.94/50720p: 60/59.94/50576i: 50480i: 59.94 Recording Pulldown Conversion None Camera Trigger None Pre-Roll Record None Encoding Formats Up to 1920 x 1080ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fpsDNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps Maximum Audio Tracks 16 Recording Media 1 x SDXC (UHS-I) Metadata Tagging Yes Timecode Support SMPTE 12M via Embedded SDI / Embedded HDMI Phantom Power None Power DC Input Power 12 VDC Battery Type 2 x L-Series Mounting Mounting 6 x 1/4″-20 Female Environmental Operating Humidity 0 to 90% Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -4 to 113°F / -20 to 45°C General Material of Construction Aluminum Dimensions (W x H x D) 7.6 x 5.14 x 1.45″ / 19.3 x 13.06 x 3.68 cm Weight 1.82 lb / 825 g Warranty Length Limited 1-Year Warranty Packaging Info Package Weight 3 lb Box Dimensions (LxWxH) 9.7 x 9.5 x 3.3″
