Blackmagic Design AT...

Description

Product Highlights
Supports 12G/3G/HD-SDI at 10-Bit
10 x 12G-SDI Inputs, 6 x 12G-SDI Outputs
Up to 16-Multiview Monitoring Windows
Webcam Output via USB-C
Frame Rate/Format Converter per Input
28-Channel Audio Mixer
4 x Upstream, 1 x Downstream Keyer
Chroma/Luma Keyers
Color/Pattern Generators
Hardware or Software Mac/Windows Control

Specs
Blackmagic Design Atem Constellation 4K 1 M/E Specs
Available M/E Layers
1 M/E
Effect Types
4x Chroma Key5x Luma Key1x DVE, Stinger1x DVE
Downstream Keys
1x Chroma, Luma, DVE
Generators
2x Color5x Pattern
Audio Mixing
48-Channel Mixing
Processing
Switching Type
Pushbutton, Software
Latency
10 Lines
Processing Resolution
UHD 4K
Color Processing
10-Bit 4:2:2
Input
Number of Video Input Sources
10
Video Inputs
10x BNC (12G-SDI) Female
Input Video Format
SDIUHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 50/59.94/60 fps720p at 50/59.94/60 fps
Audio Inputs
2x 1/4″ TRS
Embedded Audio Input
SDI: 16-Channel
Output
Video Output Channels
6
Video Outputs
6x BNC (12G-SDI) Female
Output Video Format
SDIUHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 50/59.94/60 fps720p at 50/59.94/60 fps
Embedded Audio Output
SDI: 16-Channel
Multiview Output
16-Way Multiview

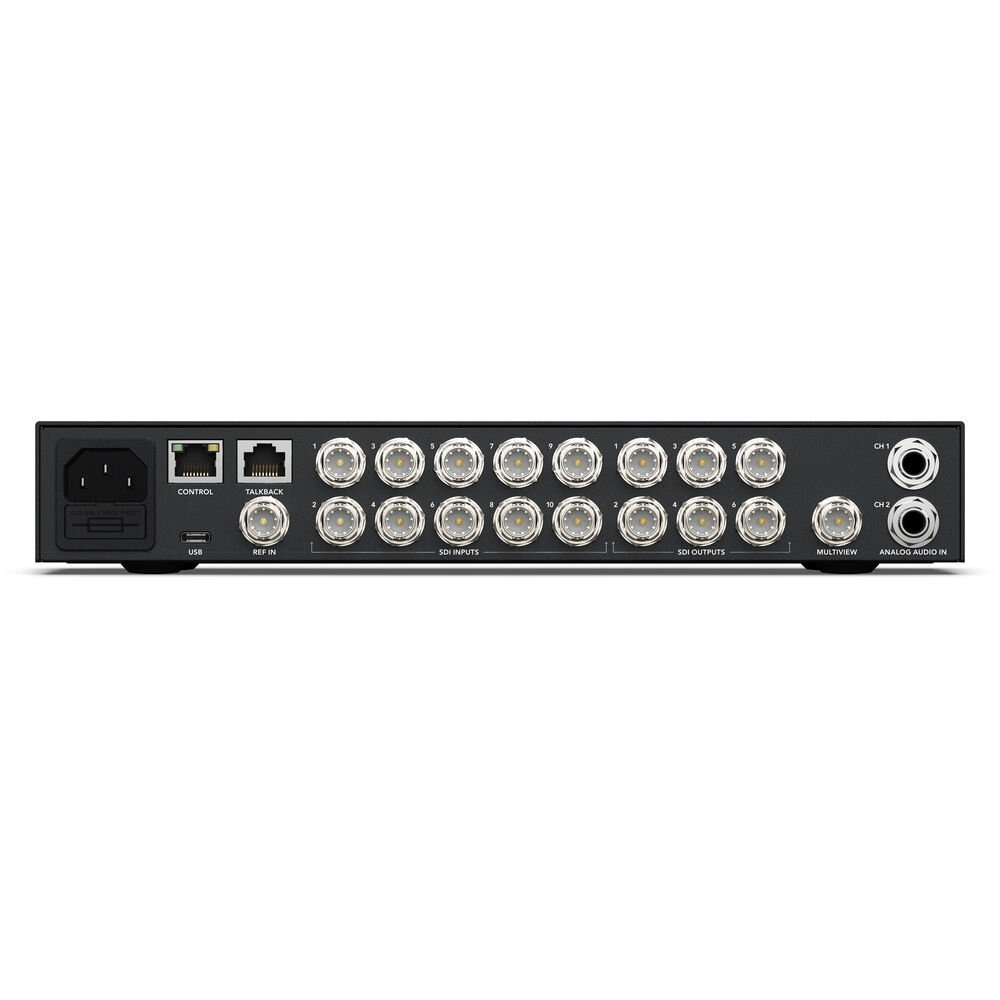

Connectivity
Other I/O
1x USB-C1x XLR 5-Pin Talkback Input1x XLR 5-Pin Talkback Output1x RJ45 Control, LAN Input/Output1x RJ45 Talkback Input/Output1x BNC Blackburst, Reference, Tri-Level Sync Input
Video Standard Compliance
SMPTE 292M/296M/424M/424M-A/424M-B/ST 2081-10/ST-2081-1/ST-2082-1/ST-2082-10

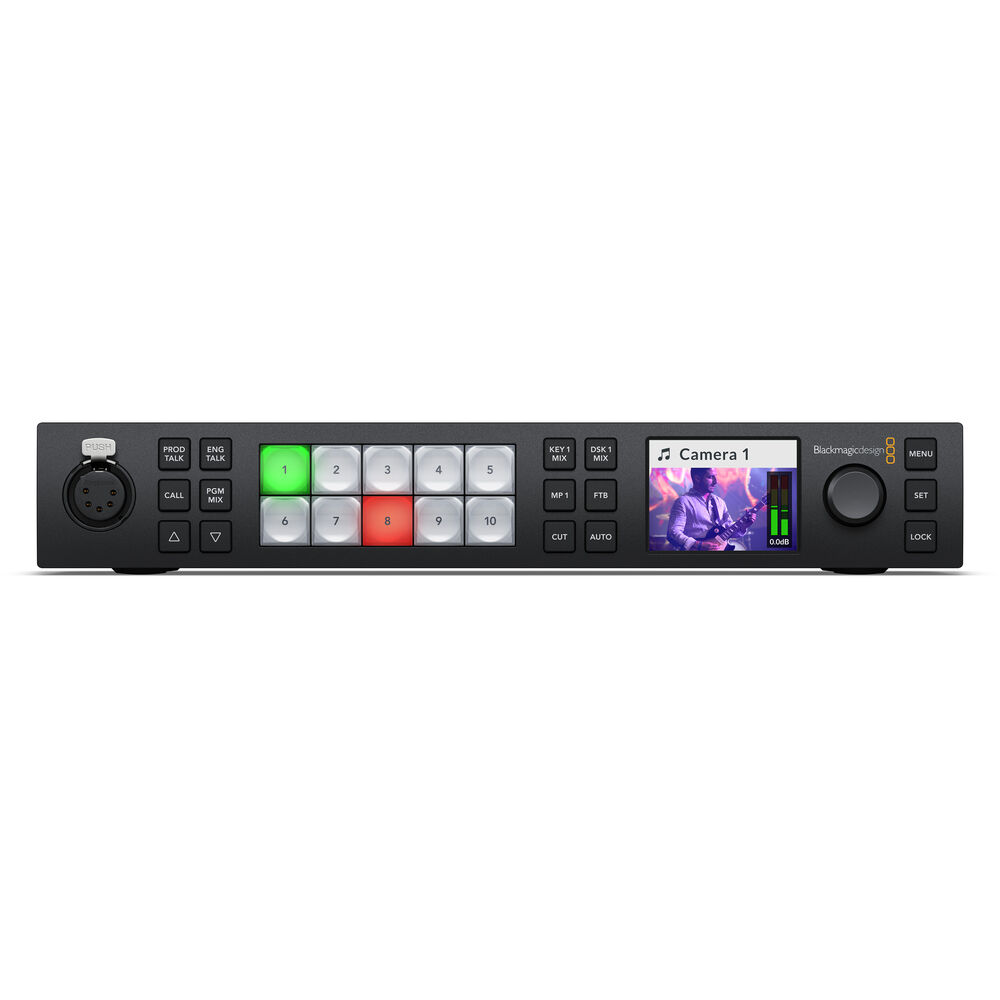

Display
Display Size
2.2″
Hardware
OS Compatibility
Windows 10 to 11macOS 13.0 to 14.0
Processor
Not Specified by Manufacturer
Wi-Fi
Yes
Bluetooth
No
Power I/O
1x IEC C13 Input
Power Consumption
Device: 100 to 240 VAC (90 W)
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
General
Rack Form Factor
1 RU
Dimensions
11 x 8.91 x 1.74″ / 27.9 x 22.63 x 4.42 cm
Weight
4.12 lb / 1.87 kg
