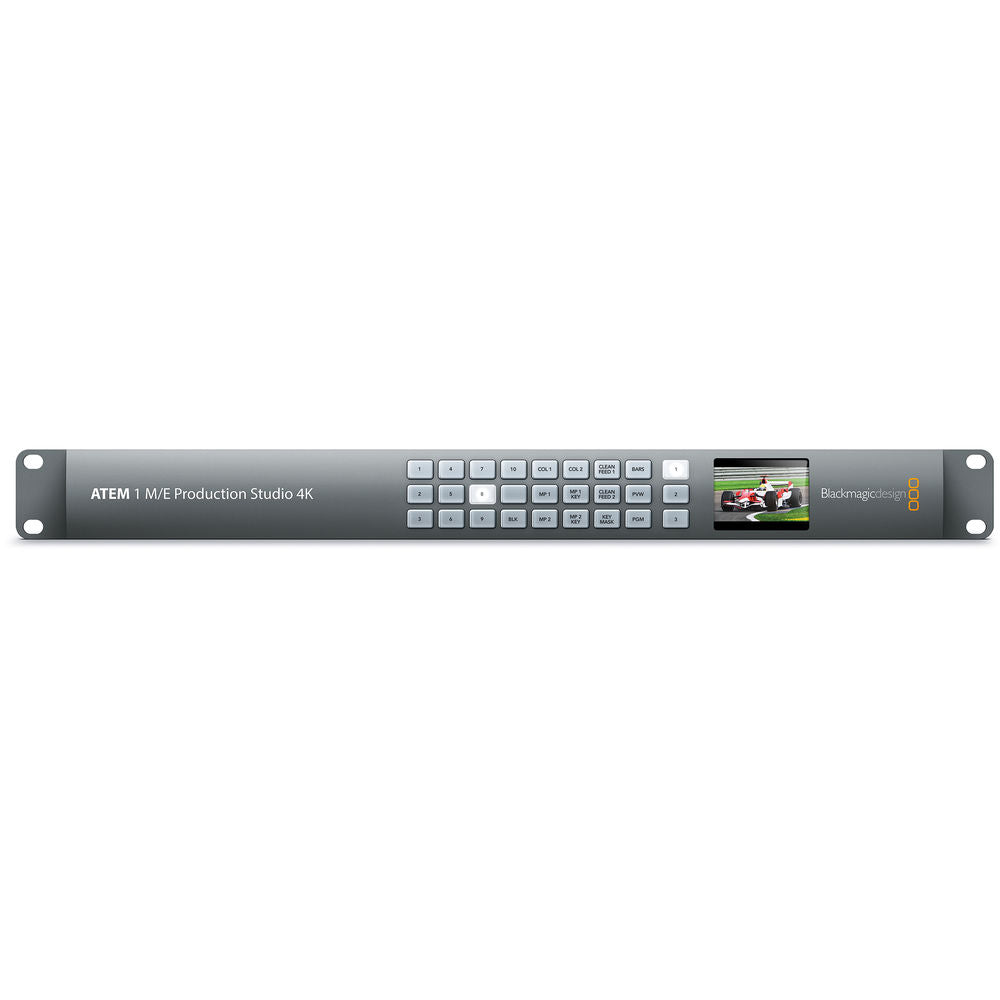

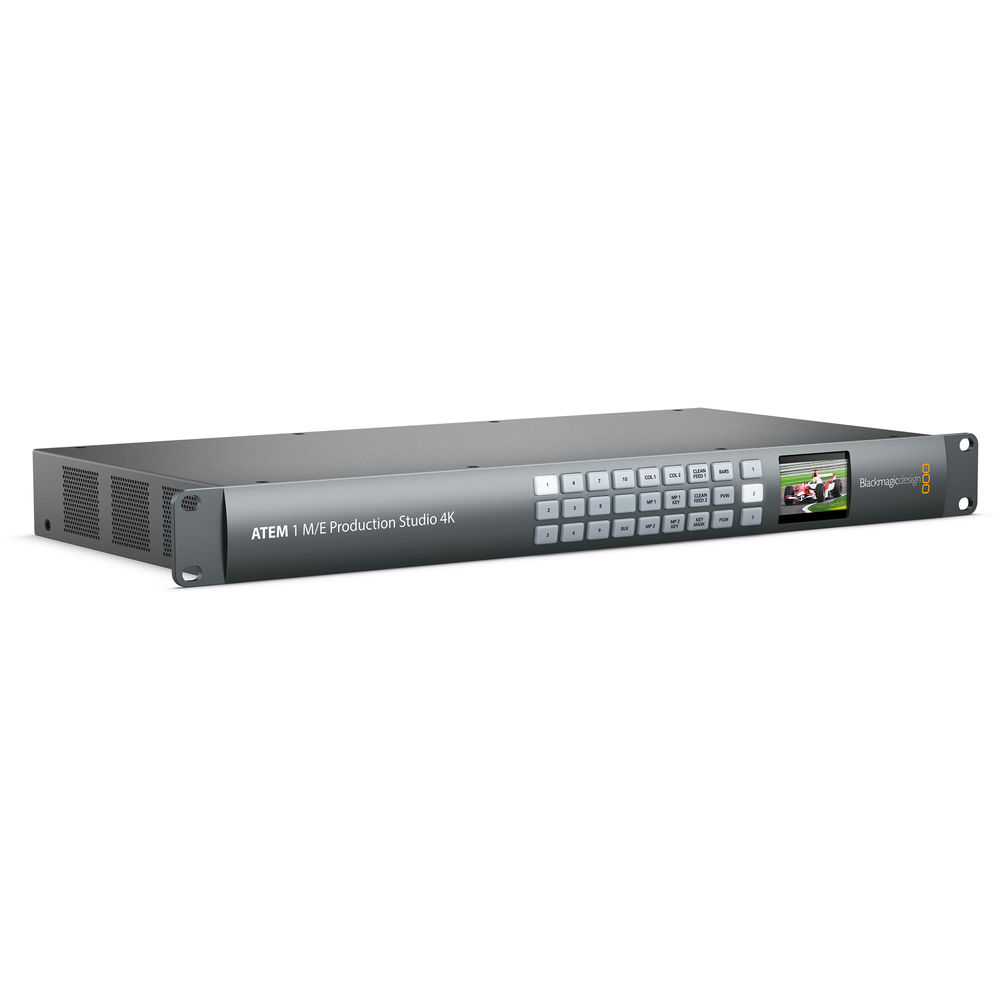

Blackmagic Design AT...

Description

Product Highlights
Supports NTSC/PAL/HD/UHD 4K at 10-bit
Supports 4K Resolution over SDI or HDMI
1 x HDMI & 10 x 6G-SDI Inputs
Tri-Sync/Black Burst Ref Sync Input
10 x Built-In Frame Synchronizers
Multiview Monitoring in HD
Program Outputs in UHD/HD/SD
4 x Keyers Total: 3 x Luma, 1 x Chroma
12-Channel Audio Mixer
Hardware or Software Mac/Windows Control

Specs
Blackmagic Design ATEM 1 Specs
Effect Types
1 x DVE and Stinger4 x Chroma Key7 x Luma Key
Downstream Keys
2 x Alpha
Generators
7 x Pattern2 x Color
Processing
Switching Type
Pushbutton, Software
Latency
2 Lines
Color Processing
10-Bit
Input
Number of Video Input Sources
10
Video Input Connectors
10 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI)1 x HDMI
Input Video Format
SDI (10-Bit)UHD 4K: 23.98/24/25/29.97/30 fps1080p: 23.98/24/25/29.97/50/59.94 fps1080i: 50/59.94 fps720p: 50/59.94 fpsPAL: 25 fpsNTSC: 29.97 fpsHDMIUHD 4K: 23.98/24/25/29.97 fps1080p: 50/59.94 fps1080i: 50/59.94 fps720p: 50/59.94 fpsPALNTSC
Audio Input Connectors
2 x 3-Pin XLR1 x 2RCA
Embedded Audio Input
SDI: 2-Channel (per Input)
Output
Video Output Channels
1

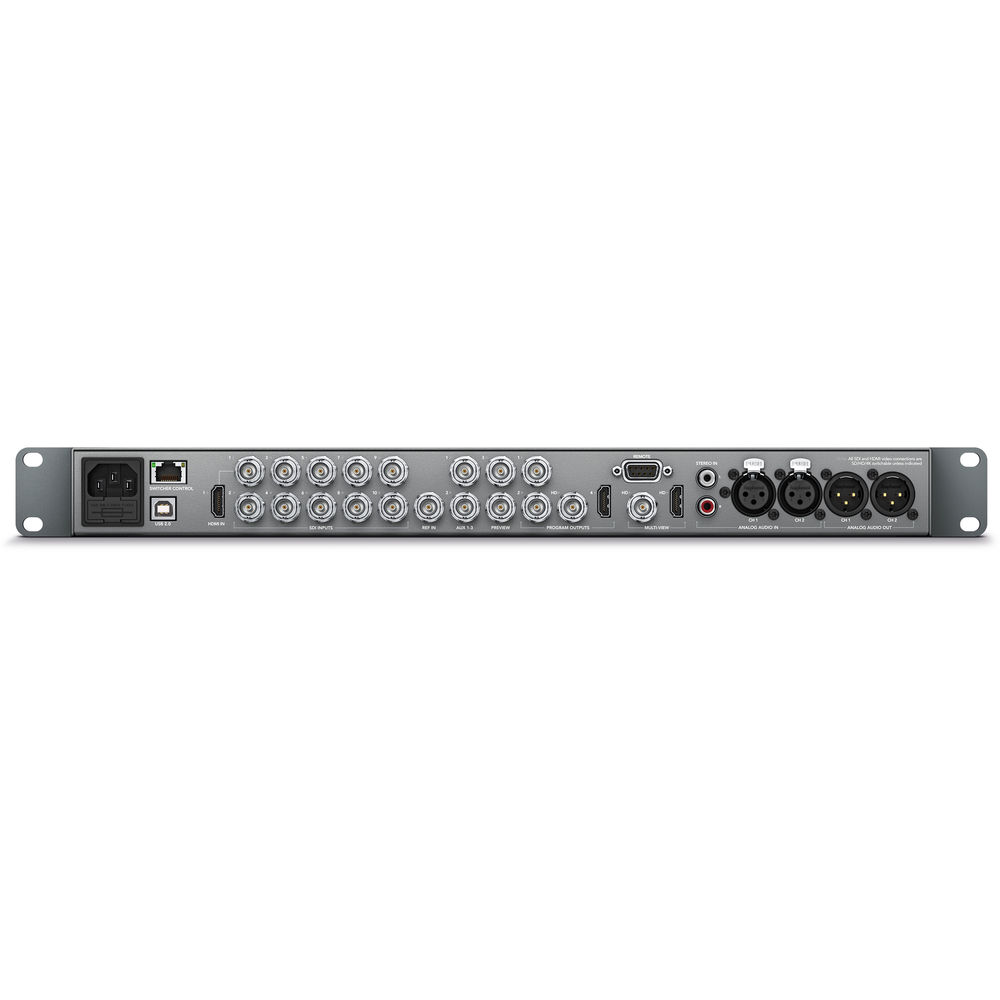

Video Output Connectors
2 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Program)1 x BNC (HD-SDI) (Program)1 x HDMI (Program)1 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Preview)3 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Pass-Through)
Output Video Format
SDI (10-Bit)UHD 4K: 23.98/24/25/29.97/30 fps1080p: 29.97/50/59.94 fps1080i: 50/59.94 fps720p: 50/59.94 fpsPAL (768 x 576)NTSCHDMI (10-Bit)UHD 4K: 23.98/24/25/29.97 fps1080p: 50/59.94 fps1080i: 50/59.94 fps720p: 50/59.94 fpsPAL (768 x 576)NTSC
Audio Output Connectors
2 x 3-Pin XLR
Multiview Output
10-Way Multiview viaSDI10-Way Multiview viaHDMI
Connectivity
Other I/O
1 x BNC Blackburst, Tri-Level Sync1 x RJ45 LAN1 x USB Type-B1 x DE-9/DB-9 RS-422
Video Standard Compliance
SMPTE 259M/292M
HDCP Support
None
Display
Display Size
2″
Hardware
OS Compatibility
macOS 10.7 or LatermacOS 10.8 or LaterWindows 7Windows 8
Power Connector
2 x IEC C14 Input
Power Consumption
Device: 100 to 240 VAC (300 W)
General
Rack Form Factor
1 RU
Dimensions
19 x 9.25 x 1.7″ / 48.26 x 23.5 x 4.32 cm
Weight
5.73 lb / 2.6 kg
Packaging Info
Package Weight
6.65 lb
Box Dimensions (LxWxH)
19.2 x 10.9 x 3.4″
