Blackmagic Design AT...

Description

Product Highlights
4-Channel Live Stream HDMI Switcher
Program and 4 x Input ISO Recording
Generates DaVinci Resolve Project
Live Tally, Stream, and Record Status

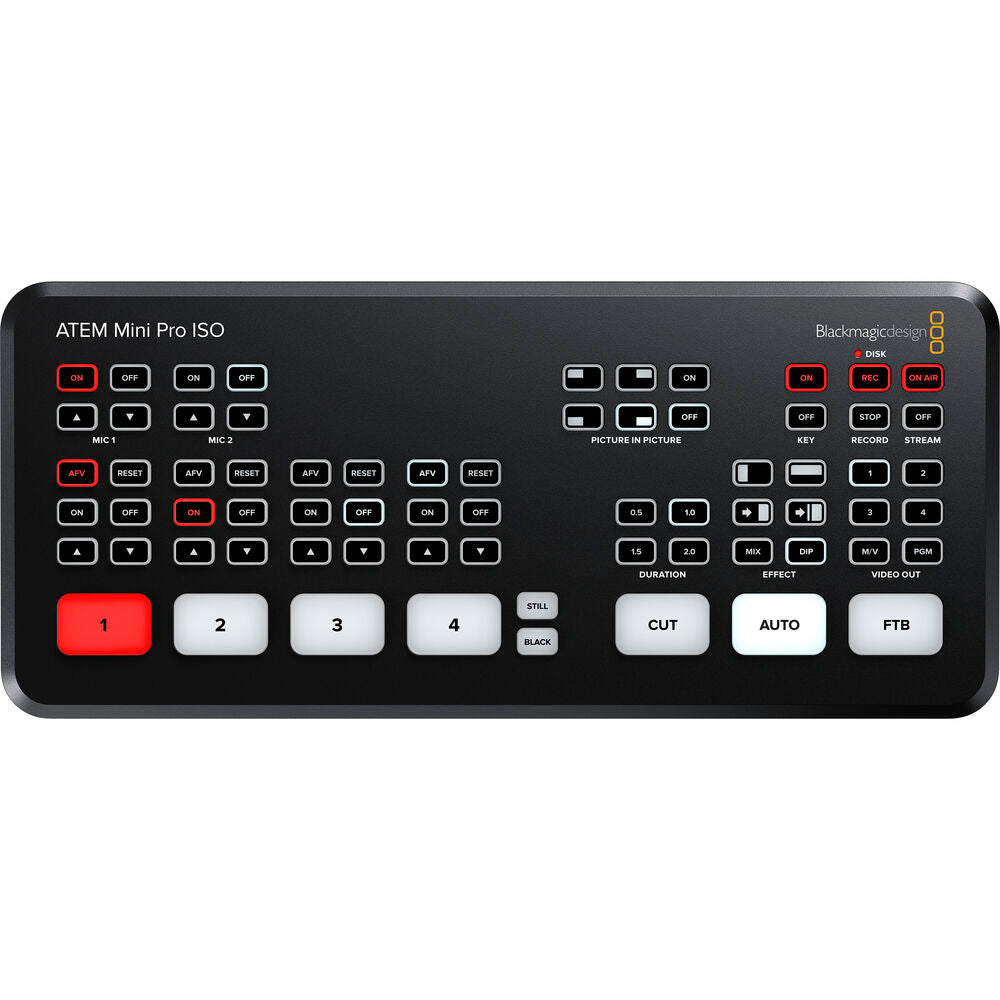

Record Button, Channel Preview Multiview
2-Channel Digital Audio Mixer per Source
HDMI Output, Ethernet ATEM Control
Media Player, Computer Input Support
Upstream and Downstream Keyers
DVE Transition, Chroma/Luma Keyers

Specs
Blackmagic Design ATEM Mini Pro Specs
Mix Effects
Available M/E Layers
5 M/E
Effect Types
1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys
1 x Chroma, DVE2 x Luma
Generators
1 x Pattern2 x Color
Audio Mixing
2-Channel Mixing
Processing
Switching Type
Pushbutton
Color Processing
10-Bit 4:2:2 YUV
Input
Number of Video Input Sources
4

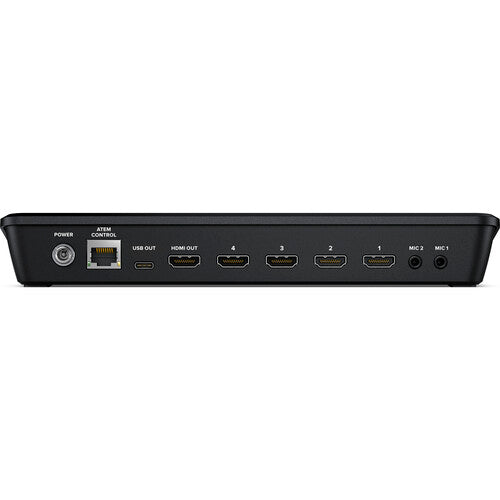

Video Input Connectors
4 x HDMI Female
Input Video Format
HDMI (10-Bit 4:2:2 YUV)1080p: 23.98/24/25/29.97/30/50/59.94/60 fps1080i: 50/59.94/60 fps720p: 50/59.94/60 fps
Audio Input Connectors
2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Input Audio Format
Analog
Embedded Audio Input
HDMI: 2-Channel (per Input)
Output
Video Output Channels
1
Video Output Connectors
1 x HDMI
Output Video Format
HDMI / RJ45 (10-Bit 4:2:2 YUV)1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output
HDMI: 2-Channel (per Output)
Multiview Output
Yes
Monitor Output
1 x HDMI
Connectivity
Other I/O
1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output1 x USB Type-C Firmware, Control Input/Output
IP Encoding/Decoding
IP Video
H.264:1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport Protocols
RTMP
Simultaneous Streams
1 Streams
Hardware
OS Compatibility
macOS 10.14 or LaterWindows 10
Power
Power Connector
1 x Barrel (12 VDC) Input
Power Consumption
36 W
Environmental
Operating Temperature
41 to 104°F / 5 to 40°C
Storage Temperature
14 to 140°F / -10 to 60°C
Operating Humidity
0 to 90%
General
Dimensions
9.35 x 4.07 x 1.38″ / 23.75 x 10.34 x 3.51 cm
Weight
19.4 oz / 550 g
Packaging Info
Package Weight
2.315 lb
Box Dimensions (LxWxH)
11.05 x 5.7 x 4.55″
