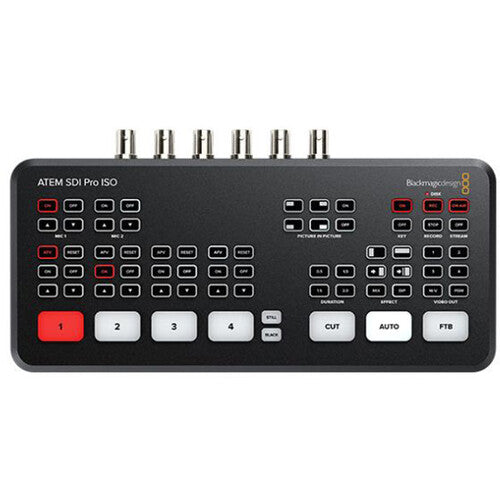

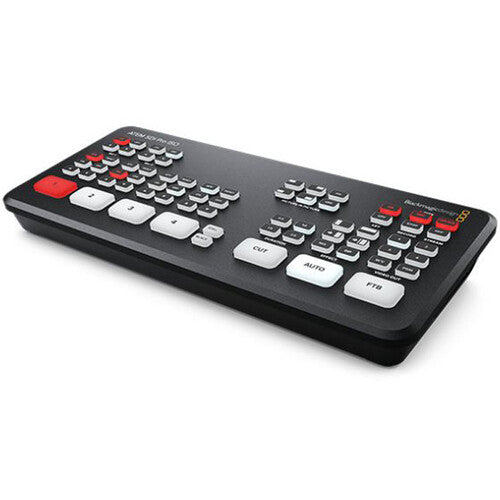

Blackmagic Design AT...

Description

Product Highlights
4-Channel Live Stream 3G-SDI Switcher
Program and 4 x Input ISO Recording
Generates DaVinci Resolve Project
Live Tally, Stream, and Record Status
Record Button, Channel Preview Multiview
2-Channel Digital Audio Mixer per Source
3G-SDI Output, Ethernet ATEM Control
Media Player, Computer Input Support
Upstream and Downstream Keyers
DVE Transition, Chroma/Luma Keyers
Specs
Blackmagic Design ATEM SDI Pro Specs
Available M/E Layers
5 M/E
Effect Types
DVE, Transition, Chroma Key
Generators
1 x Pattern2 x Color
Audio Mixing
2-Channel Mixing
Processing
Switching Type
IR Remote, Pushbutton, Software
Input
Number of Video Input Sources
4

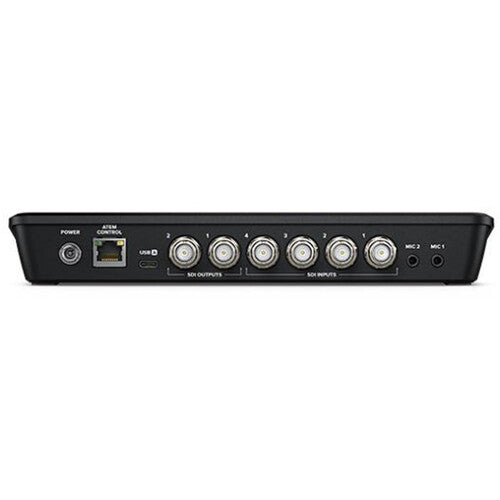

Video Input Connectors
4 x BNC (3G-SDI)
Input Video Format
SDI (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 56/59.94/60 fps720p at 50/59.94/60 fps
Audio Input Connectors
2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Input Audio Format
Analog
Embedded Audio Input
SDI: 2-Channel (per Input)
Output
Video Output Channels
3
Video Output Connectors
2 x BNC (3G-SDI)1 x USB Type-C
Output Video Format
SDI (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fpsUSB Type-C (10-Bit 4:2:2 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output
SDI
Multiview Output
None
Connectivity
Other I/O
1 x RJ45 Control Input/Output
HDCP Support
None
Hardware
OS Compatibility
macOS 11macOS 12 or LaterWindows 10Windows 11*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Power Connector
1 x Barrel (12 VDC) Input
Power Consumption
Device: 36 W
Environmental
Operating Temperature
41 to 104°F / 5 to 40°C
Storage Temperature
14 to 140°F / -10 to 60°C
Operating Humidity
0 to 90% (Non-Condensing)
General
Dimensions
9.35 x 4.67 x 1.38″ / 23.75 x 11.86 x 3.51 cm
Weight
23.9 oz / 678 g
Packaging Info
Package Weight
2.355 lb
Box Dimensions (LxWxH)
10.5 x 7.2 x 2.6″
