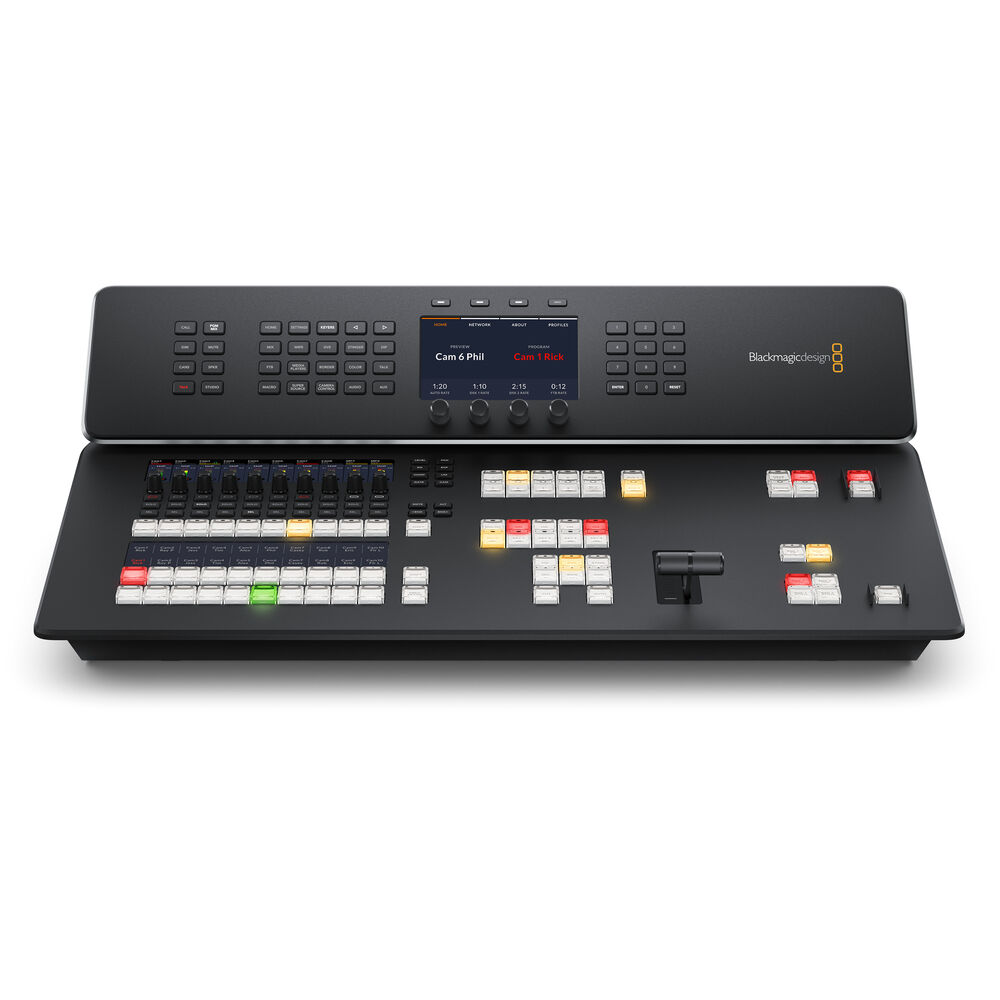

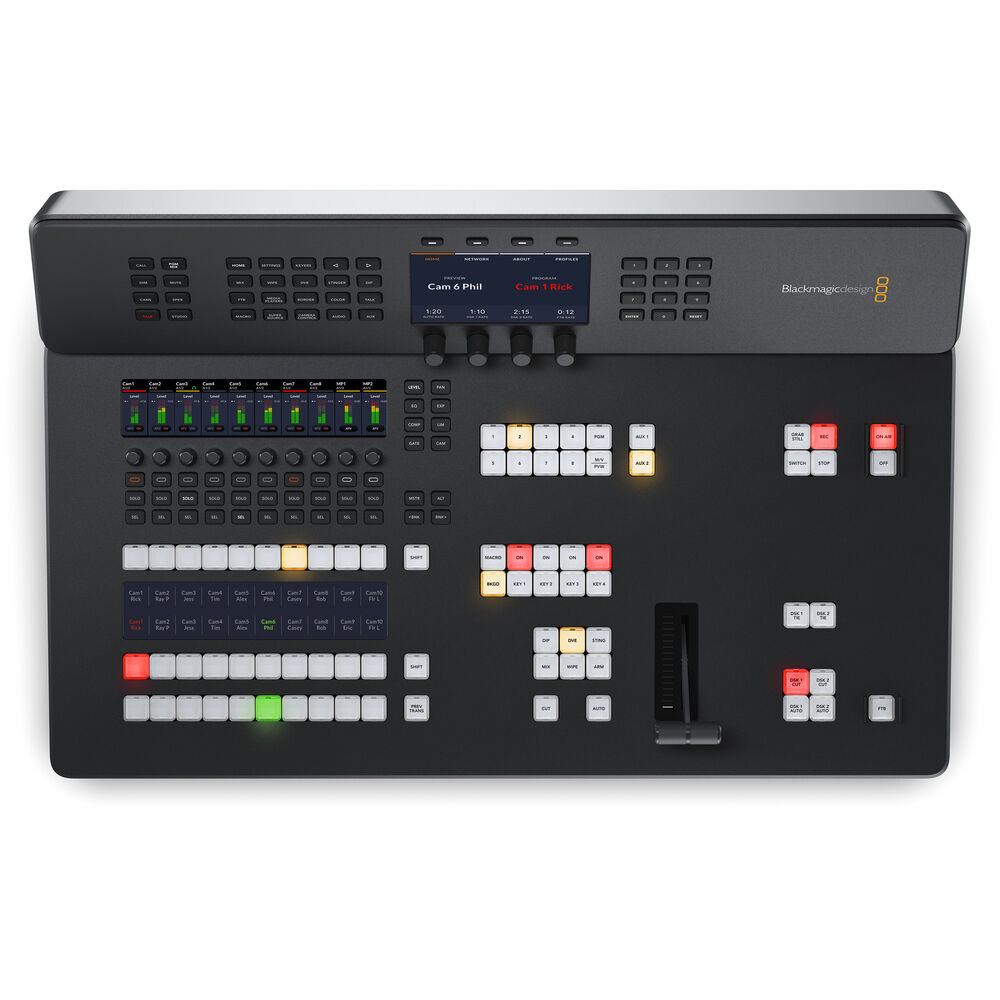

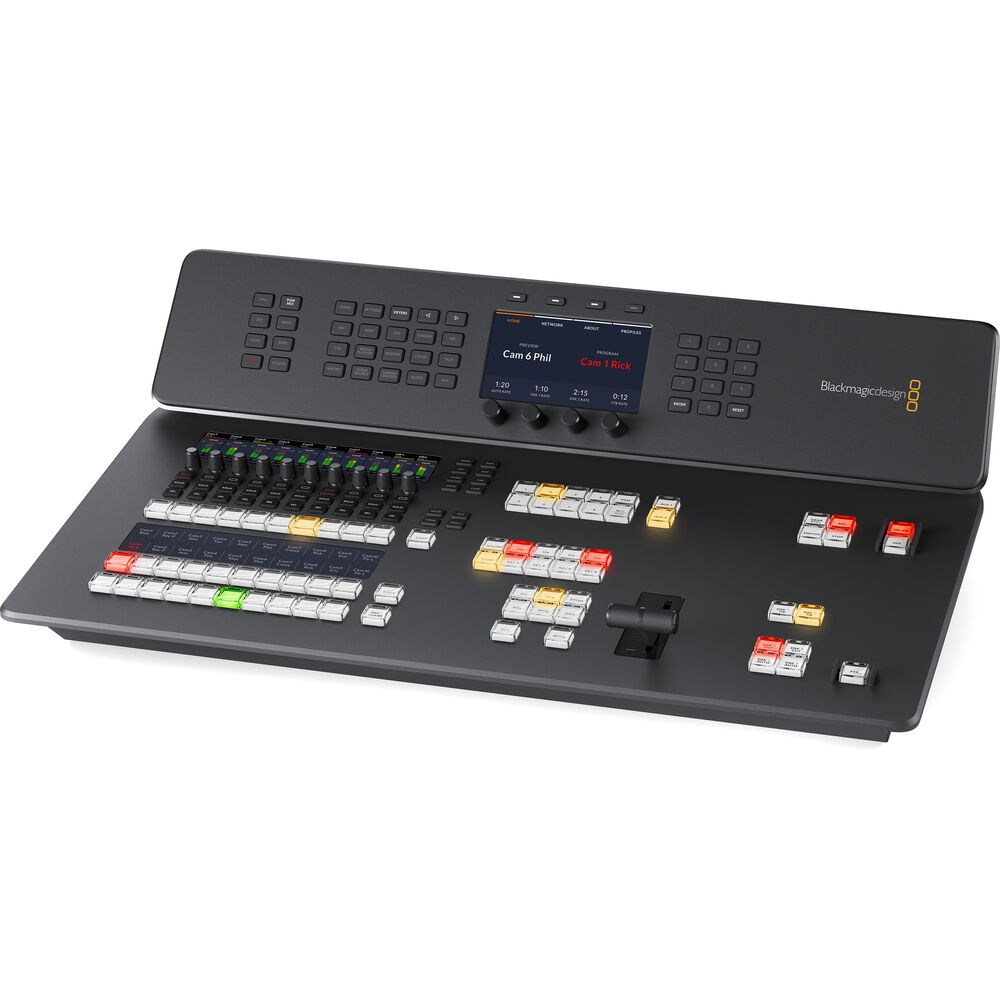

Blackmagic Design AT...

Description

Product Highlights
8-Input 3G-SDI 1080p60 Live Switcher
Redesigned Buttons and Layout
Streaming Support, USB & M.2 Recording
Blackmagic Cloud Integration
Webcam Support, Runs Blackmagic OS
Up to 16 Multiview Output Sources
Audio Mixing, Transitions, T-Bar, AUX
Customizable Electronic LCDs
Studio Camera Control
Timecode, MADI, Talkback

Specs
Blackmagic Design ATEM HD8 Specs
Available M/E Layers
4 M/E
Effect Types
1 x DVE, Stinger4 x Chroma Key7 x Luma Key
Downstream Keys
2 x Chroma, Luma, DVE
Generators
7 x Pattern2 x Color
Audio Mixing
58-Channel Mixing
Processing
Switching Type
Pushbutton, Software, T-Bar
Processing Resolution
1080p at 60
Color Processing
10-Bit 4:2:2 RGB
Input
Number of Video Input Sources
8
Video Inputs
8 x BNC (3G-SDI) Female
Input Video Format
SDI (10-Bit 4:2:2 RGB)1080p at 23.98/24/25/29.97/30/50/60 fps1080i at 50/59.94/60 fps720p 50/59.94/60 fps
Audio Inputs
1 x BNC MADI Female1 x 2RCA Stereo Analog Female2 x XLR 3-Pin Analog Female1 x XLR 5-Pin Female
Embedded Audio Input
SDI
Output
Video Output Channels
8
Video Outputs
8 x BNC
Output Video Format
SDI (10-Bit 4:2:2 RGB)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 50/59.94/60 fps720p at 50/59.94/60 fps
Audio Outputs
2 x 1/4″ TRS Stereo Analog Female
Embedded Audio Output
SDI
Multiview Output
16-Way Multiview
Monitor Output
1 x HDMI
Connectivity
Other I/O
1 x BNC Reference Input1 x BNC Reference Output1 x BNC Timecode1 x BNC Timecode4 x RJ45 LAN Input/Output1 x RJ45 Talkback Input/Output1 x RJ12 Remote Input/Output2 x USB-C Output
Video Standard Compliance
SMPTE 292M/296M/424M/425M-A/425M-B
IP Video
H.264:1920 x 1080 at 60p Encoding
Transport Protocols
RTMP, TCP/IP
Hardware
OS Compatibility
macOS 12 to 13 or LaterWindows 10 to 11*As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Wi-Fi
None
Bluetooth
None
Power I/O
1 x IEC C14 (100 to 240 VAC) Input1 x XLR 4-Pin (12 VDC) Input
Power Consumption
Device: 100 W
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
Storage Humidity
0 to 90%
General
Dimensions
23 x 14.8 x 6.35″ / 58.4 x 37.6 x 16.13 cm
Weight
14.9 lb / 6.8 kg
