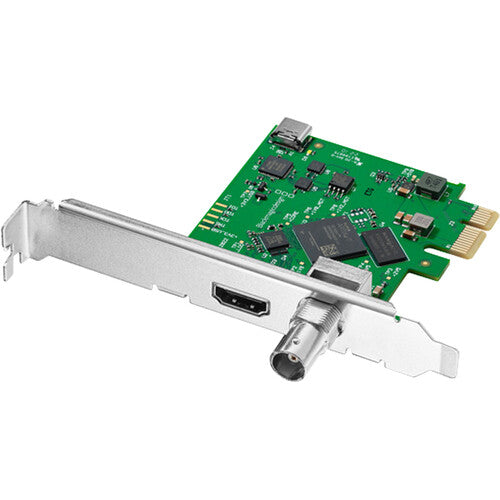

Blackmagic Design De...

Description

Product Highlights
Broadcast-Quality Recording
1-Lane PCIe Slot Card (for 1-16 Lanes)
SDI and HDMI Inputs
Supports up to 2K DCI over SDI
Up to 1080p60 Resolution Support in HDMI
8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
REC 601/709 Color Space Support
Mac, Windows, and Linux Compatible
Specs
Blackmagic Design Mini Recorder HD Specs
Inputs / Outputs
System Connection
(Length Unspecified)
Video Inputs
1x BNC (3G-SDI)1x HDMI (2.0)
Audio Inputs
No
Simultaneous Multi-Input Support
Not Specified by Manufacturer
Format Support
Input Video Format
SDI (8/10/12-Bit 4:4:4 RGB)1080p at 23.98/24/25/29.97/30 fps720p at 50/59.94/60 fps576i / 625 lines at 50 fps480i / 525 lines at 59.94 fpsSDI (8/10-Bit 4:2:2 YUV)DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fpsDCI 2KPsF at 23.98/24/25/29.97/30 fps1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080PsF at 23.98/24/25/29.97/30 fps1080i at 50/59.94/60 fps576i / 625 lines at 50 fps480i / 525 lines at 59.94 fpsHDMI (8-Bit 4:4:4 RGB, YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 50/59.94/60 fps720p at 50/59.94/60 fps576i / 625 lines at 50 fps480i / 525 lines at 59.94 fpsHDMI (12-Bit 4:4:4 YUV)1080p at 23.98/24/25/29.97/30/50/59.94/60 fps1080i at 50/59.94/60 fps720p at 50/59.94/60 fps576i / 625 lines at 50 fps480i / 525 lines at 59.94 fps
Embedded Audio
SDI: 16-ChannelHDMI: 8-Channel
Standards
Video Standard Compliance
SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1
HDR Support
Not Specified by Manufacturer
Hardware
OS Compatibility
macOS 11.1macOS 12.0 or LaterWindows 10Windows 11Linux
Power Consumption
Device: 3 W
Environmental
Operating Temperature
37 to 72°F / 5 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Operating Humidity
0 to 90% ()
Storage Humidity
0 to 90% (Non-Condensing)
General

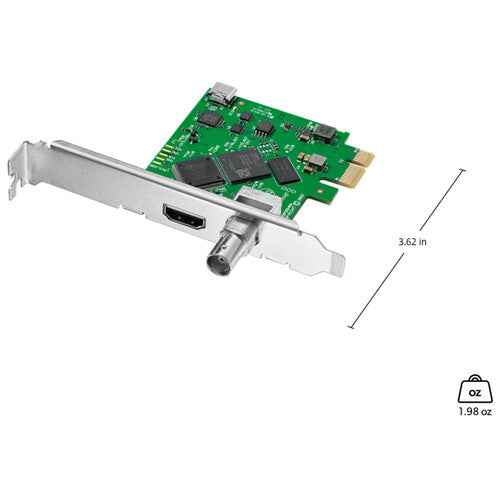

Dimensions
3.62″ / 91.95 mm
Weight
1.98 oz / 56 g
Packaging Info
Package Weight
0.29 lb
Box Dimensions (LxWxH)
5.6 x 5.3 x 1.2″
