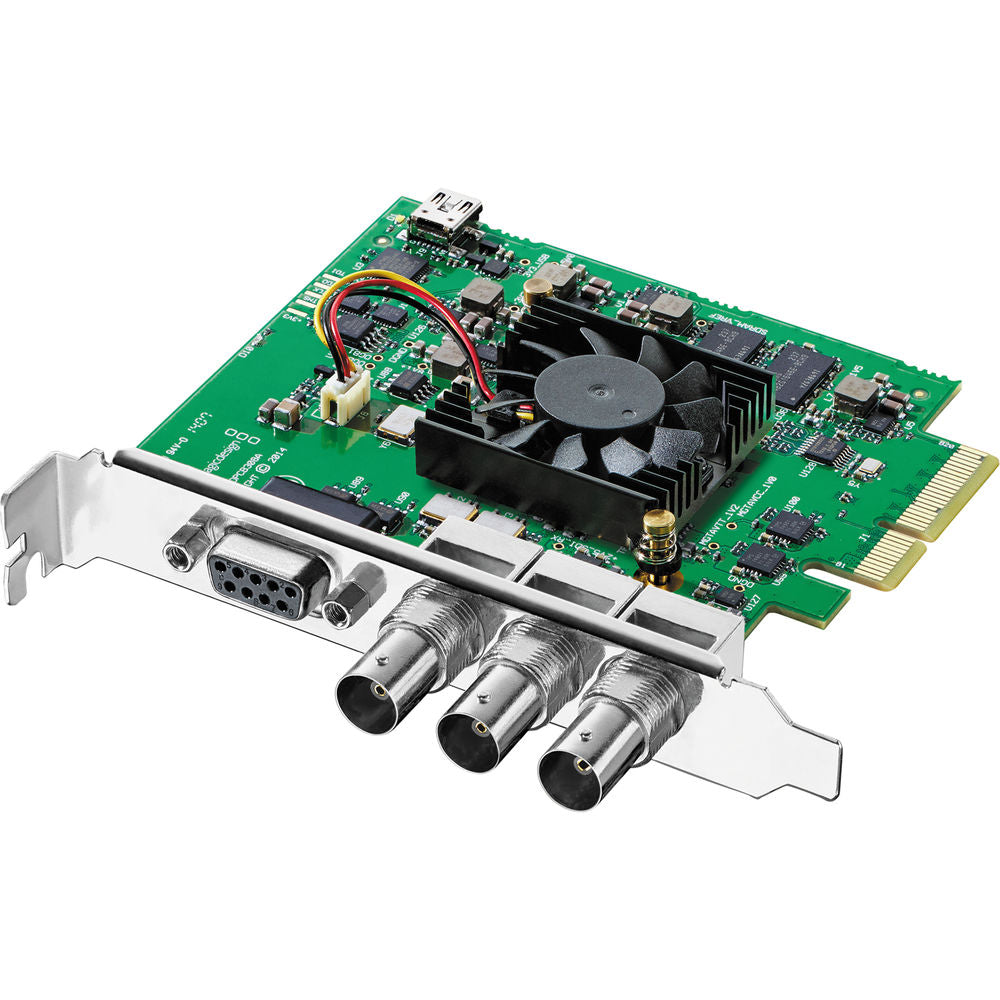

Blackmagic Design De...

Description

Product Highlights
SD/HD/3G/6G-SDI Input/Output
PCIe Interface
UHD / DCI 4K 4:2:2 by Single-Link 6G-SDI
1080p 4:4:4 by Single-Link 3G-SDI
10-Bit Processing
RS-422 Deck Control
Internal Keying
Reference Input
Down/Up/Cross Conversions
Mac OS X, Windows, and Linux Compatible
Specs
Blackmagic Design SDI Specs
Host Connection
PCIe x1 (PCIe 1.0)
Input
Video Input Connectors
1 x BNC (6G-SDI)
Input Video Format
SDI (10-Bit 4:4:4/4:2:2)PAL: 50 fpsNTSC: 59.94 fps720p: 50/59.94/60 fps1080p: 23.98/24/25/30/50/59.94/60 fps1080PsF: 23.98/24/25/29.97/30 fps1080i: 50/59.94/60 fpsUHD 4K: 23.98/24/25/29.97/30 fpsDCI 4K: 23.98/24/25 fpsDCI 2K: 23.98/24/25 fps
Output
Video Output Connectors
1 x BNC (6G-SDI)
Output Video Format
SDI (10-Bit 4:4:4/4:2:2)PAL (768 x 576): 50 fpsNTSC: 59.94 fps720p: 50/59.94/60 fps1080p: 23.98/24/25/30/50/59.94/60 fps1080PsF: 23.98/24/25/29.97/30 fps1080i: 50/59.94/60 fpsUHD 4K: 23.98/24/25/29.97/30 fpsDCI 4K: 23.98/24/25 fpsDCI 2K: 23.98/24/25 fps
Standards
Video Standard Compliance
SMPTE 259M/292M/296M/372M/425M/ST-2081ITU -R BT.601/BT.656
HDCP Support
None
Environmental
Operating Temperature
41 to 104°F / 5 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
General
Certifications
C-Tick, CE, FCC, as per Manufacturer
Dimensions
3.75″ / 9.53 cm
Weight
4.5 oz / 128 g
Warranty Length
Limited 3-Year Warranty
Packaging Info
Package Weight
0.45 lb
Box Dimensions (LxWxH)
5.5 x 5.3 x 1.1″
