Blackmagic Design Hy...

Description

Product Highlights
1 x 3G-SDI Input
1 x HDMI and 1 x 3G-SDI Outputs
Records ProRes, DNxHD, and H.264
Records in H.264 SDI 4:2:2 10-Bit

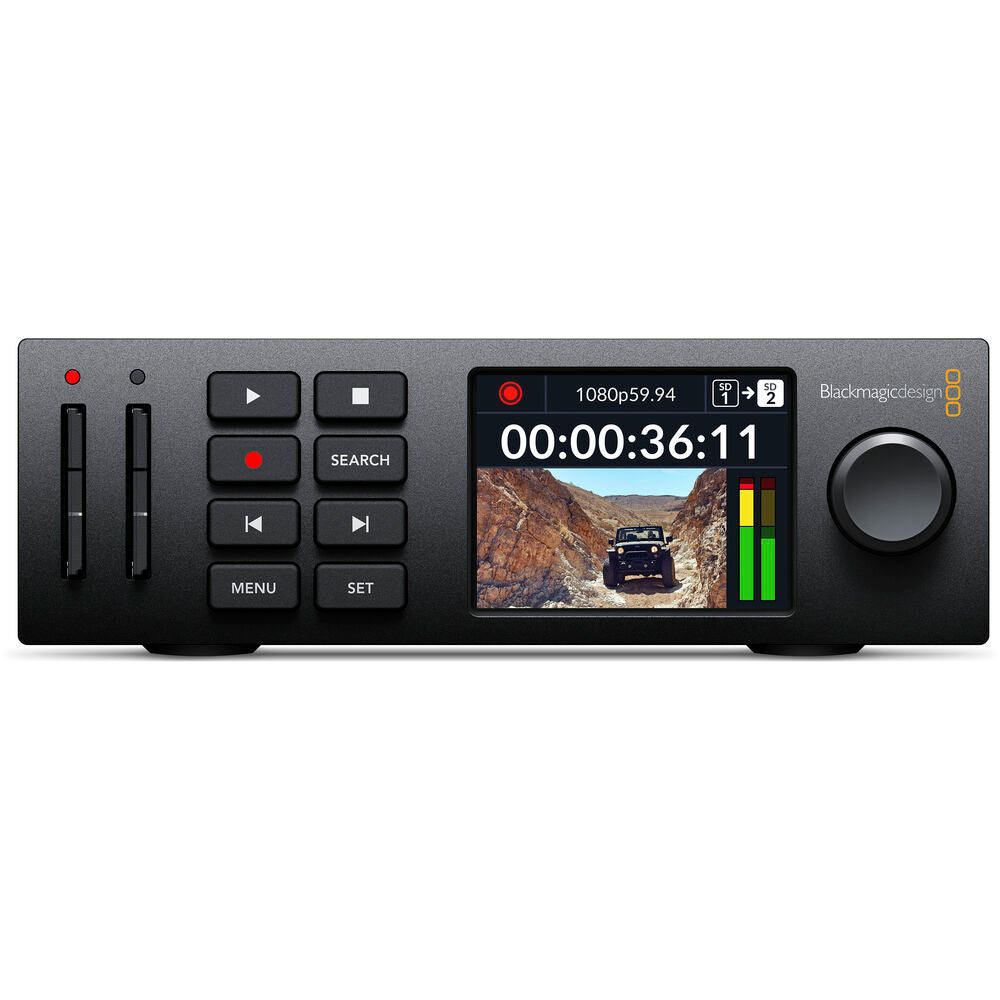

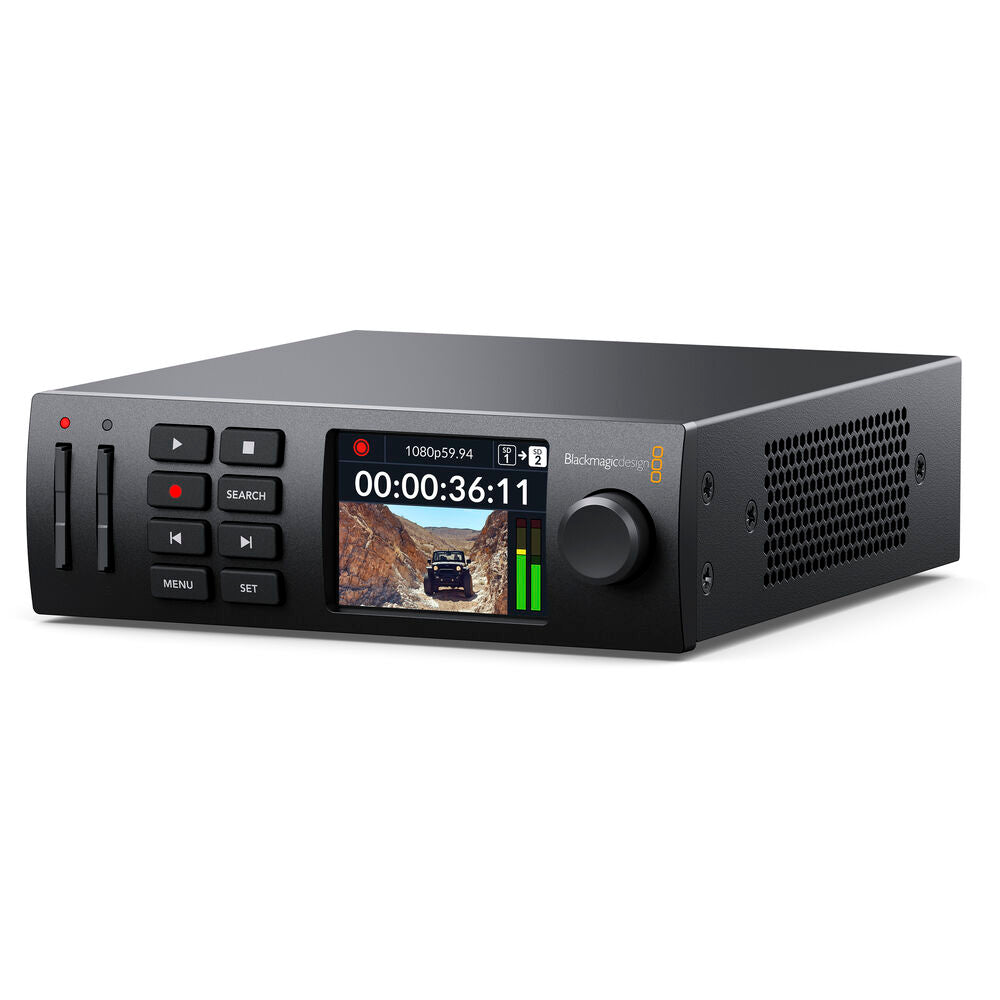

Front-Panel Buttons, Jog Wheel, LCD
Timecode and Reference Input/Output
1/3 Rack-Mountable Form Factor
USB Type-C, 1G Ethernet, RS-422

Specs
Blackmagic Design HyperDeck Studio HD Mini Specs

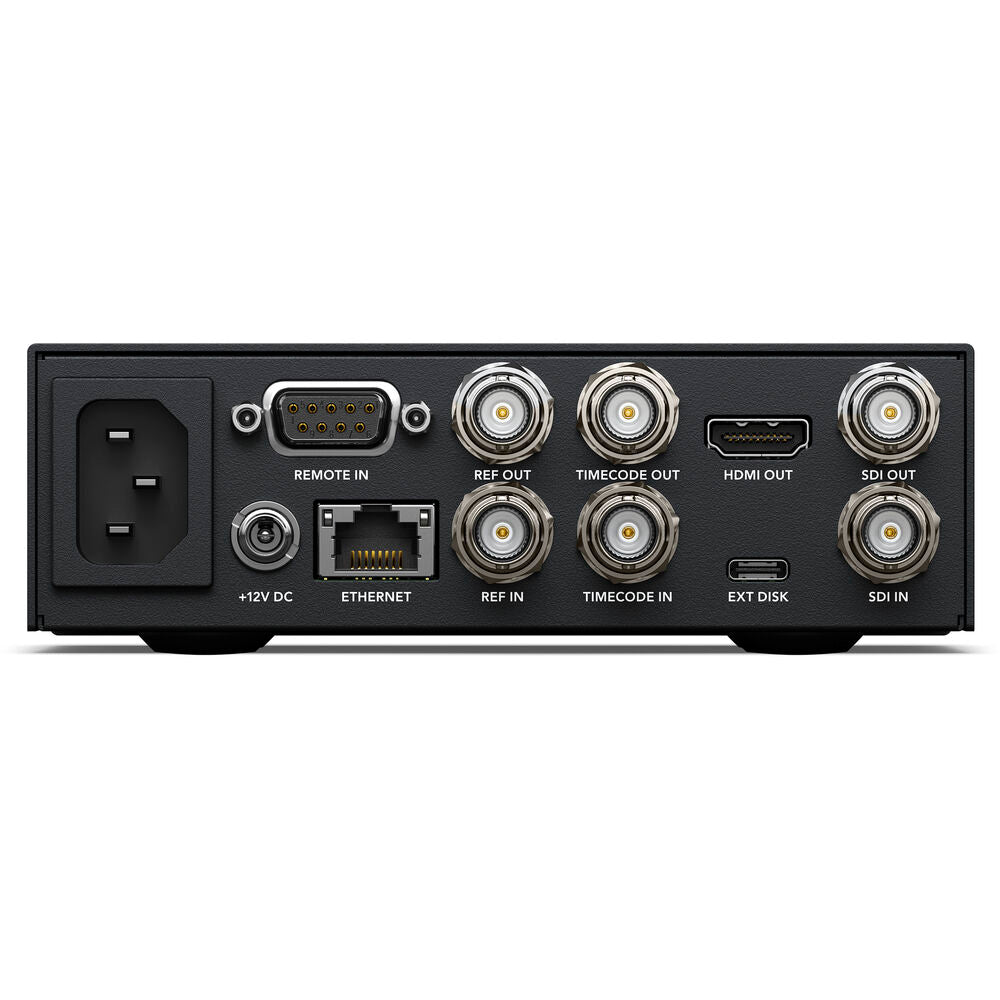

Connectivity
Video Input
1 x BNC, 3G-SDI
Video Output
1 x BNC, 3G-SDI1 x HDMI Type A1 x USB Type-C (Webcam or External Recording of SD, HD, 2K)
Timecode
In: 1 x BNCout: 1 x BNC
Reference
Tri-Sync or Black BurstInput Connector: 1 x BNCOutput Connector: 1 x BNC
Audio Input
None (Embedded Audio Only, 16 Channels)
Audio Output
None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI)
Device Control
1 x RS-422 Deck Control Port on DB9 Female
Ethernet
1 x RJ45 for Remote Operation
Media Interface
2 x SD SlotsMedia Type: UHS I and UHS IIFormat: ExFAT or HFS+
Standards
Supported Resolutions
2K2048 x 1080p: 30/29.97/25/24/23.98HD1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.981920 x 1080i: 60/59.94/501280 x 720p: 60/59.94/50SDNTSCPAL
SDI Compliance
SMPTE 259M//292M/296M/372M/424M/425M Level A and BSMPTE 2084SMPTE 2108‑1
SDI Metadata Support
HD RP188 and Closed Captioning CEA‑708HDR Metadata Supported on SDI
Video Sampling
4:2:2 YUV
Color Depth
10-Bit
Color Space
REC 601REC 709REC 2020
HDR Support
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support
Autodetection of SD and HD
Audio Sampling
Television Standard 48 kHz, 24-Bit
Supported Codecs
ProRes
HQ QuickTime
422 QuickTime
LT QuickTime
Proxy QuickTime for Formats up to 1080p60

DNxHD
220x
220x MXF
145
145 MXF
45
45 MXF for 720p and 1080p HD Formats up to 60 fps
¿H.264
SDI 4:2:2 10-Bit
High 4:2:0 8-Bit
Medium 4:2:0 8-Bit
Low 4:2:0 8-Bit for Progressive Formats up to 1080p60
System Requirements
Operating System
macOS: 10.15(Catalina), 11.5 (Big Sur) or LaterWindows: 10 64-Bit
General
Rack Height
1 RU
Power Supply
AC100 to 240 VAC, 50/60 HzDC12 VDC; 1 x Locking 5.5 mm Barrel
Operating Temperature
41 to 122°F / 5 to 50°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Relative Humidity
0 to 90% Non-Condensing
Dimensions
6.96 x 5.51 x 1.74″ / 17.68 x 14 x 4.42 cm
Weight
1.8 lb / 0.82 kg
