Blackmagic Design Hy...

Description

Product Highlights
Records up to 4K DCI at 30 fps
Plays Back up to 3840 x 2160 at 30 fps
1 x 6G-SDI Input, 1 x HDMI 2.0 Input
1 x HDMI 2.0 and 2 x 6G-SDI Outputs
Records ProRes, DNxHD, and H.264
Records in H.264 SDI 4:2:2 10-Bit

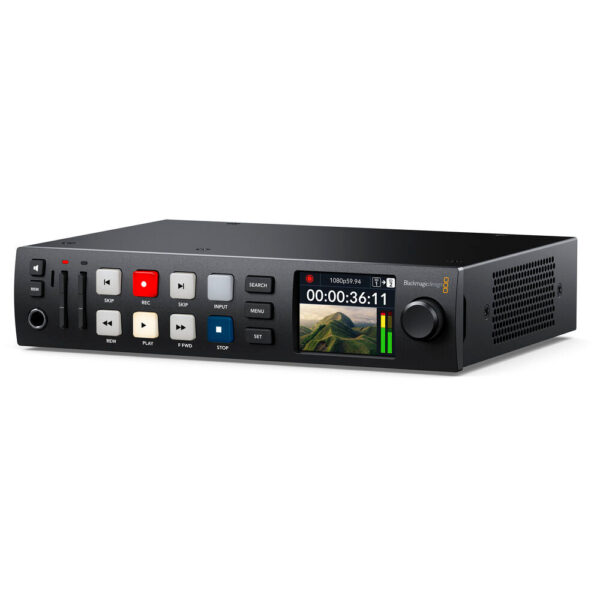

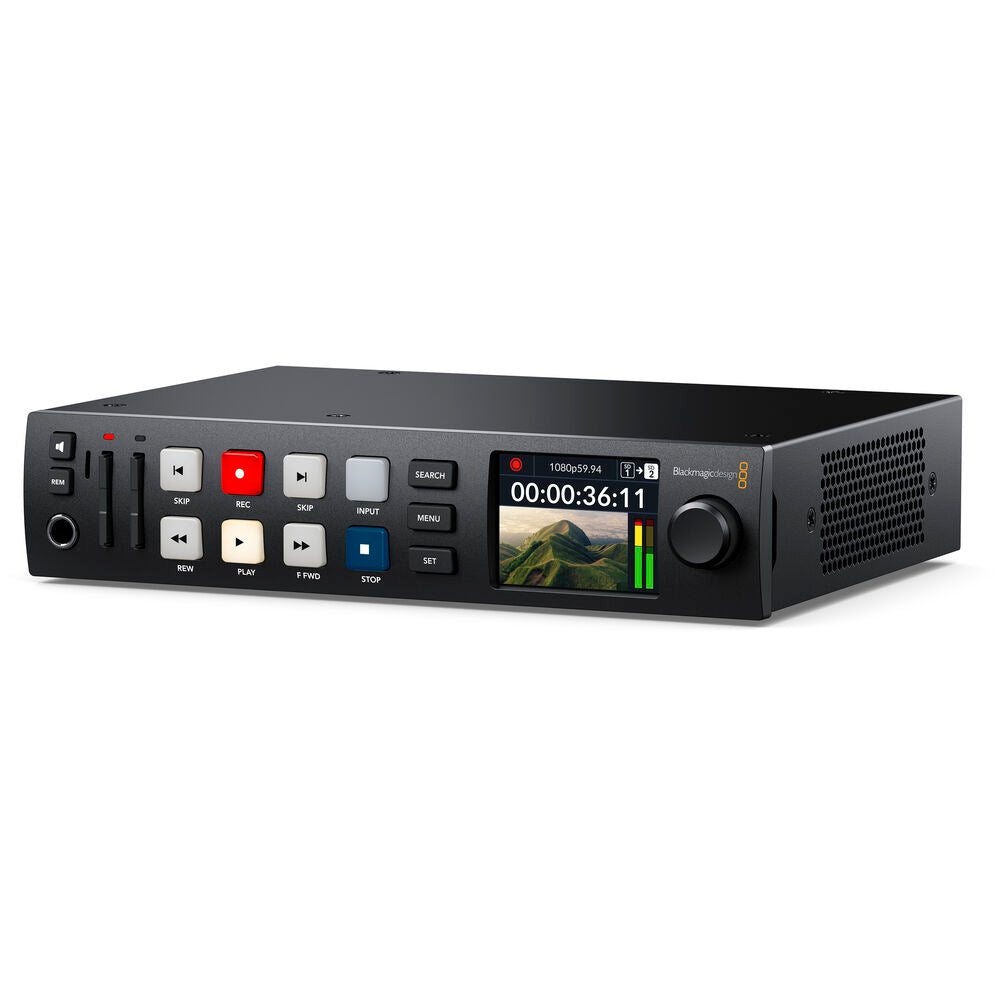

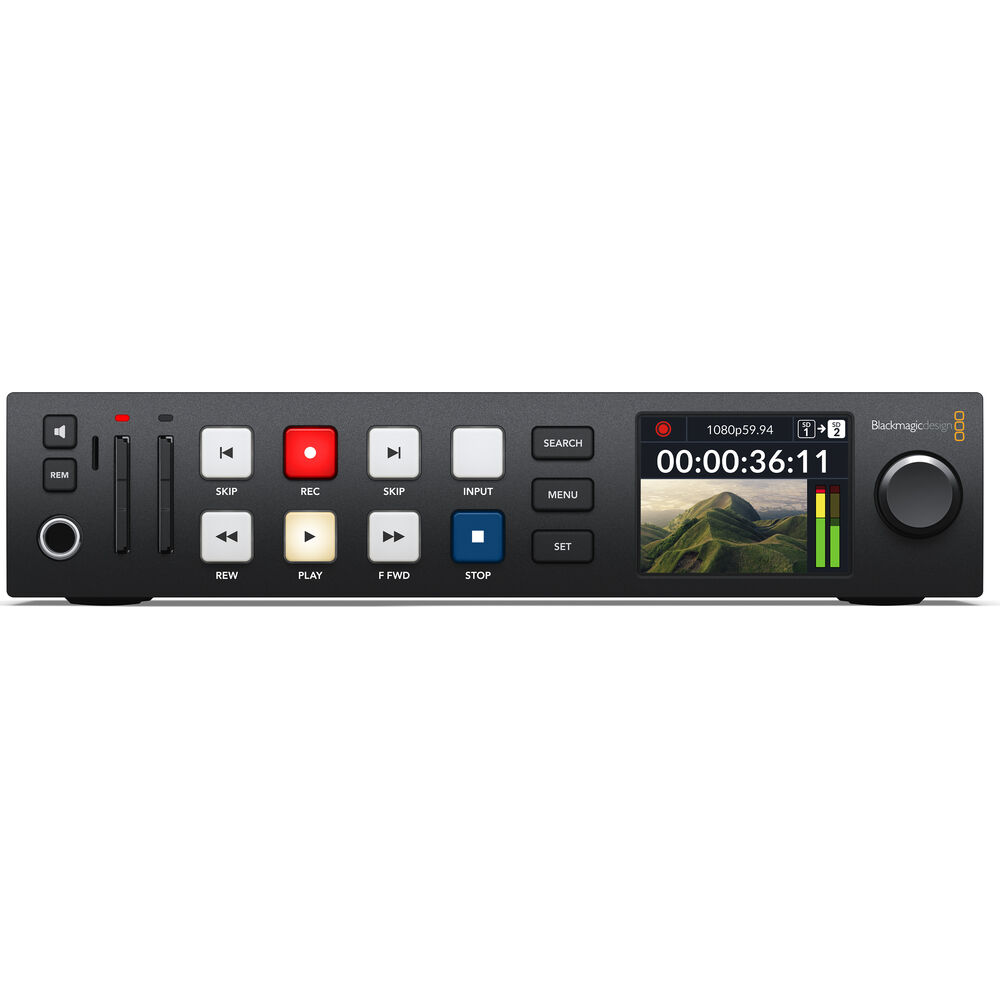

Front-Panel Buttons, Jog Wheel, LCD
Timecode and Reference Input/Output
1/3 Rack-Mountable Form Factor
USB Type-C, 1G Ethernet, RS-422
Specs
Blackmagic Design HyperDeck Studio HD Plus Specs

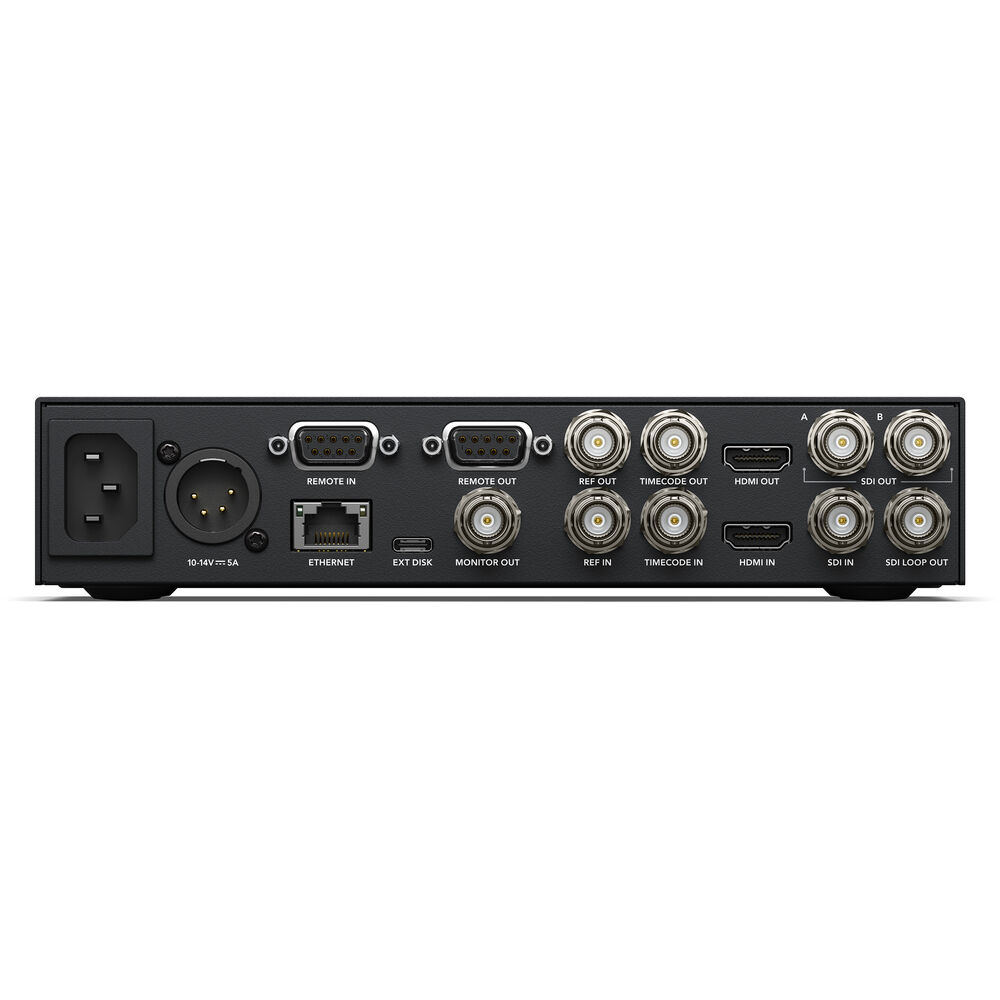

Connectivity
Video Input
1 x BNC, 6G-SDI1 x HDMI 2.0 Type A
Video Output
1 x BNC, 6G-SDI Loop-Out2 x BNC, 6G-SDI1 x HDMI Type A, 2.01 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI)1 x BNC, 3G-SDI (Monitor Out)
Timecode
In: 1 x BNCOut: 1 x BNC
Reference
Tri-Sync or Black BurstInput Connector: 1 x BNCOutput Connector: 1 x BNC
Audio Input
None (Embedded Audio Only, 16 Channels)
Audio Output
Headphone: 1 x 1/4″ Phone
Device Control
2 x RS-422 Deck Control Port on DB9 Female
Ethernet
1 x RJ45 for Remote Operation
Media Interface
2 x SD SlotsMedia Type: UHS I and UHS IIFormat: ExFAT or HFS+
Standards
Supported Resolutions
4K4096 x 2160p: 30/29.97/25/24/23.983840 x 2160p: 30/29.97/25/24/23.982K2048 x 1080p: 0/29.97/25/24/23.98HD1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.981920 x 1080i: 60/59.94/501280 x 720p: 60/59.94/50SDNTSCPAL
SDI Compliance
SMPTE 259M//292M/296M/372M/424M/425M Level A and BSMPTE 2084SMPTE 2108‑1
SDI Metadata Support
HD RP188 and Closed Captioning CEA‑708HDR Metadata Supported on SDI
Video Sampling
4:2:2 YUV
Color Depth
10-Bit
Color Space
Rec. 601Rec. 709Rec. 202033-Point 3D LUTS Can Be Applied to SDI Monitor Out
HDR Support
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support
Autodetection of SD, HD, and 6G-SDI
Audio Sampling
Television Standard 48 kHz, 24-Bit
Supported Codecs
ProResHQ QuickTime422 QuickTimeLT QuickTimeProxy QuickTime for Formats up to 1080p60DNxHD220x220x MXF145145 MXF4545 MXF for 720p and 1080p HD Formats up to 60 fpsH.264SDI 4:2:2 10-BitHigh 4:2:0 8-BitMedium 4:2:0 8-BitLow 4:2:0 8-Bit for Progressive Formats up to 1080p60
System Requirements
Operating System
macOS: 10.15 (Catalina), 11.5 (Big Sur) or LaterWindows: 10 64-Bit
General
Rack Height
1 RU
Power Supply
AC100 to 240 VAC, 50/60 HzDC12 VDC; 1 x 4-Pin XLRConsumption100 W Max
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Relative Humidity
0 to 90% Non-Condensing
Dimensions
8.27 x 6.96 x 1.74″ / 21.01 x 17.68 x 4.42 cm
Weight
1.8 lb / 0.82 kg
