Blackmagic Design Mi...

Description

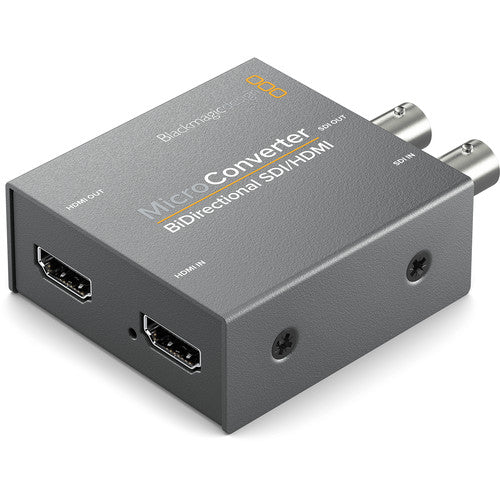

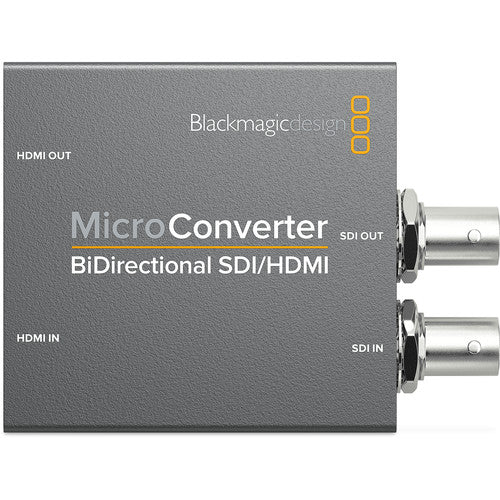

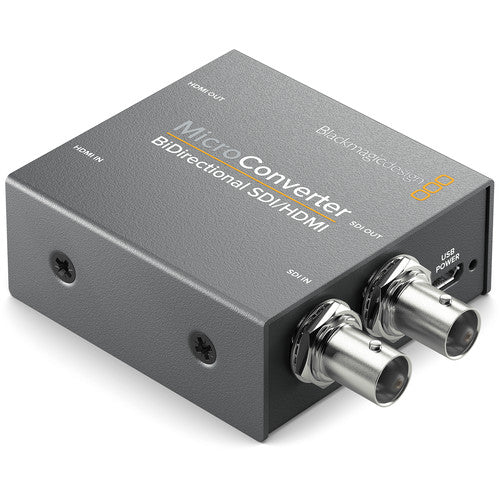

Product Highlights
Converts SDI to HDMI & HDMI to SDI
Simultaneous Conversions
1 x Input & 1 x Output SD/HD/3G-SDI
1 x Input & 1 x Output HDMI

Specs
Blackmagic Design CONVBDC/SDIHDWPSU Specs
Connections
Video Input
1 x 3G/HD/SD-SDI1 x HDMI type A
Video Output
1 x 3G/HD/SD-SDI1 x HDMI type A
Other I/O
1 x Micro-USB
Standards
Supported Video Standards
SDI:1080p: 60/59.94/50/30/29.97/25/24/23.981080i: 60/59.94/50720p: 60/59.94/50NTSC SD: 525i 59.94PAL SD: 625i 50HDMI:1080p: 60/59.94/50/30/29.97/25/24/23.981080i: 60/59.94/50720p: 60/59.94/50NTSC SD: 525i 59.94PAL SD: 625i 50
SDI Compliance
SMPTE 425M/424M/372M/296M/292M/259M
Color Precision
SDI: 4:2:2HDMI: 4:2:2
SDI Color Space
SDI: YUVHDMI: YUV
Operating System
Supported Operating Systems
MacOS 10.12 SierraMacOS High Sierra 10.13 or laterWindows 8.1Windows 10
Power
Power Consumption
2.5 W
Operational Voltage Range
4.4 to 5.25 VDC
Physical & Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Relative Humidity
0 to 90%, non-condensing
Dimensions
3.18 x 2.32 x 0.98″ / 8.1 x 5.9 x 2.5 cm
Weight
6.13 oz / 174 g
Packaging Info
Package Weight
0.85 lb
Box Dimensions (LxWxH)
5.75 x 4.85 x 2.75″
