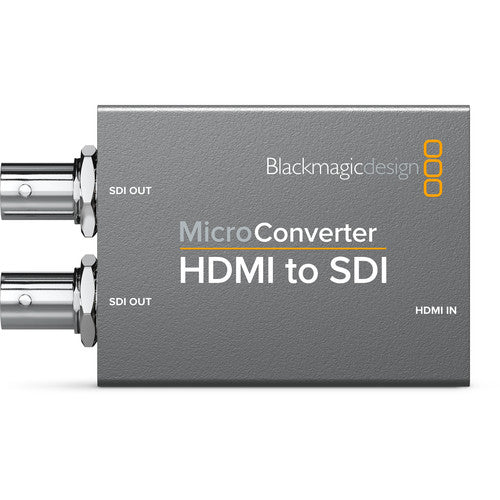

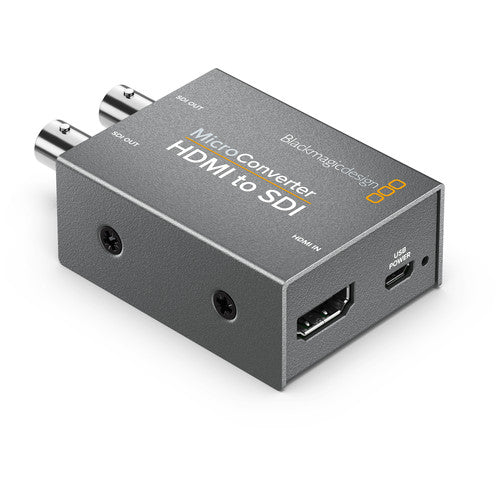

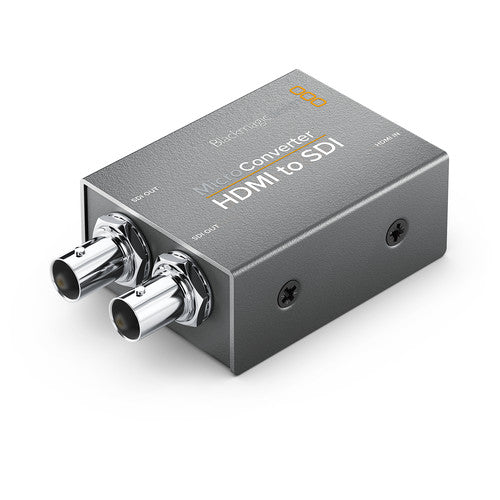

Blackmagic Design Mi...

Description

Product Highlights
HDMI Input
2 x SDI Outputs
Supports SD and HD Signals
Automatic Input Signal Detection

Specs
Blackmagic Design HDMI TO SDI Specs
I/O

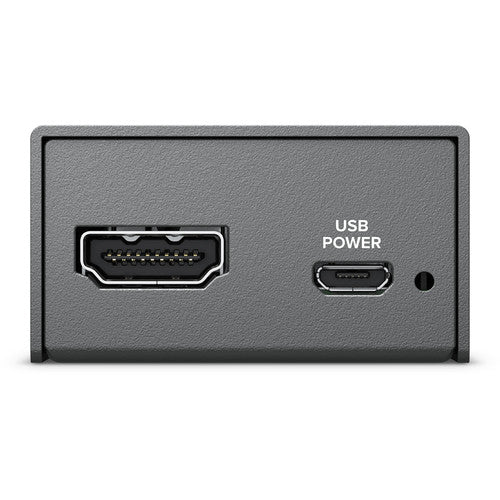

1 x HDMI type A input2 x SD/HD/3G-SDI BNC output1 x micro-USB
Format Support
1080p24/25/29.97/30/50/59.941080i50/59.94/60720p50/59.94/60NTSCPAL
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
Color Precision
4:2:2
Color Space
YUV and RGB
OS Support
Mac OS X 10.10, 10.11 or laterWindows 8.1, 10
Power

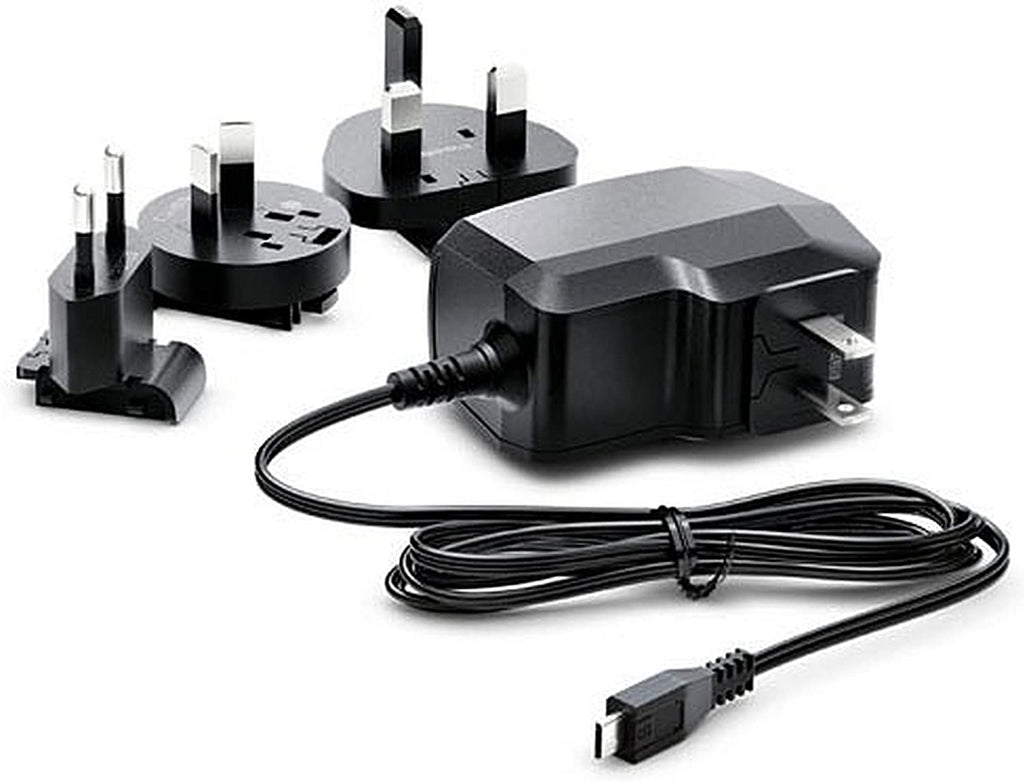

Power input: 5 VDC via USB Micro-BPower consumption: 2.0 WOperational voltage range: 4.4 to 5.25 VDC
Environmental
Operating temperature: 32 to 104°F / 0 to 40°CStorage temperature: -4 to 140°:F / -20 to 60°CRelative humidity: 0 to 90% non-condensing
Dimensions
3 x 1.8 x 1″ / 76 x 46 x 25 mm
Weight
5.3 oz / 150 g
Packaging Info
Package Weight
0.785 lb
Box Dimensions (LxWxH)
5.75 x 4.1 x 2.75″
