Description

Product Highlights
Super 35 HDR Sensor, Gen 5 Color Science
Canon Active EF Mount, Mini XLR Inputs

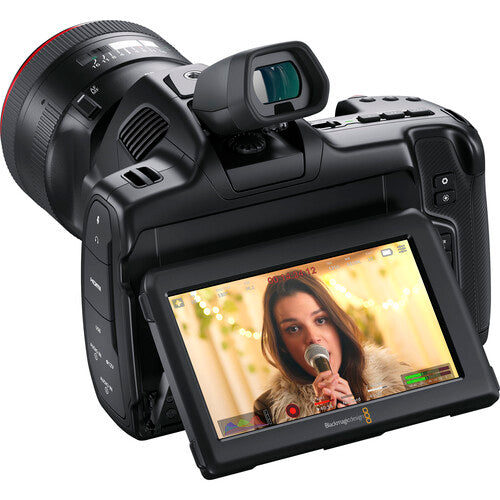

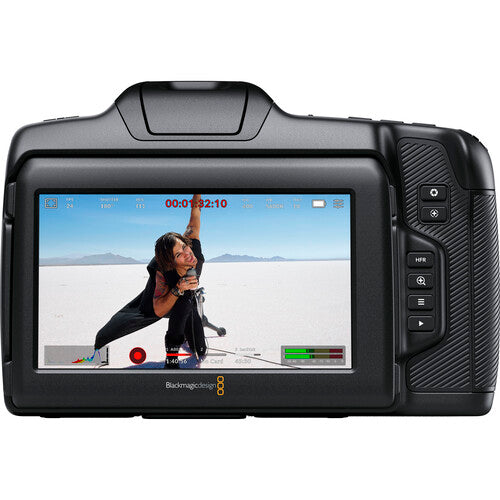

5″ Tilting LCD Touchscreen
Does Not Have Internal ND Filters
Record 6K 6144 x 3456 up to 50 fps
Record up to 120 fps Windowed 2.8K/1080p
CFast 2.0 & SD/UHS-II Card Slots
Dual Native 400 & 3200 ISO

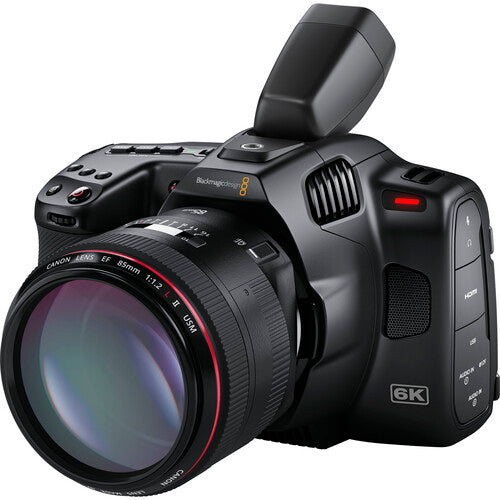

Supports Optional Pro EVF
Supports Optional Pro Battery Grip
Specs

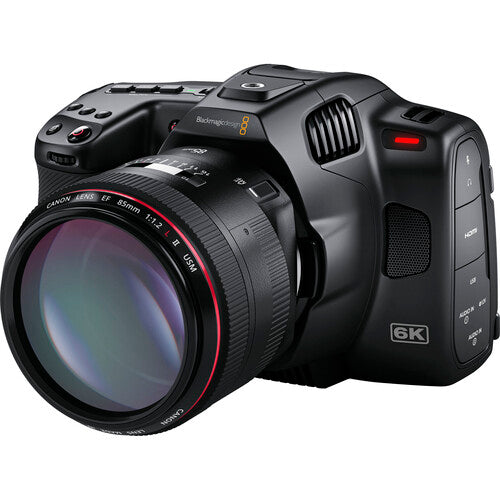

Blackmagic Design Pocket Cinema Camera 6K G2 Specs
Imaging

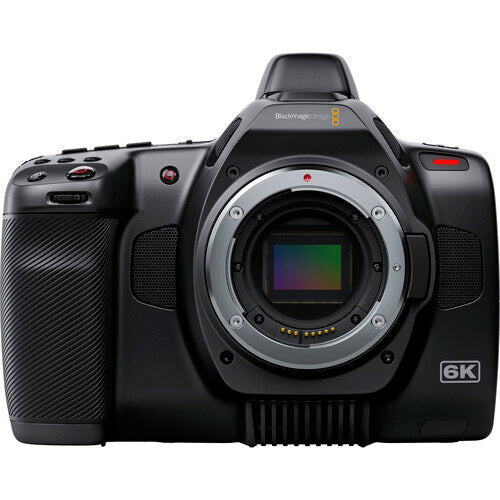

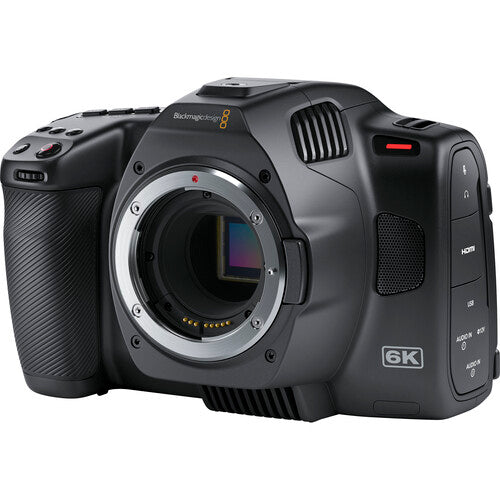

Lens Mount
Canon EF
Lens Communication
Yes, with Autofocus Support
Sensor Resolution
Effective: 21.2 Megapixel (6144 x 3456)
Sensor Type
23.1 x 12.99 mm (Super35) CMOS
Image Stabilization
None
Built-In ND Filter
None
Internal Filter Holder
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Electronic Rolling Shutter
ISO Sensitivity
100 to 25,600
Shutter Angle
5 to 360°
Advertised Dynamic Range
13 Stops
Internal Video Capture
Raw Recording
Raw6144 x 3456 at 23.98/24.00/25/29.97/50 fps [49 to 483 MB/s]6144 x 2560 at 23.98/24.00/25/29.97/50/59.94/60 fps [37 to 359 MB/s]5744 x 3024 up to 23.98/24.00/25/29.97/50/59.94/60 fps [40 to 395 MB/s]4096 x 2160 at 23.98/24.00/25/29.97 fps [28 to 163 MB/s]3728 x 3104 at 23.98/24.00/25/29.97 fps [36 to 265 MB/s]2868 x 1512 at 23.98/24.00/25/29.97 fps [14 to 101 MB/s]
Recording Modes
ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LTDCI 4K (4096 x 2160) up to 59.94pUHD 4K (3840 x 2160) up to 59.94pFull HD (1920 x 1080) up to 119.88p
Sensor Crop While Recording
6K (6144 x 2560) in 2.4:1 When Recording in Raw5744 x 3024 When Recording in Raw4K (4096 x 2160) When Recording in Raw3728 x 3104 When Recording in Raw2868 x 1512 When Recording in Raw
Variable Frame Rates
6K: Up to 60 fps1080p: Up to 119.88 fps
Recording Limit
Unlimited
Built-In Microphone Type
Stereo
External Video Capture
Raw Output
USB:6144 x 3456 at 23.98/24.00/25/29.97/50 fps 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94/60 fps 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94/60 fps
External Recording Modes
4:2:2 10-Bit via HDMI
IP Streaming
None

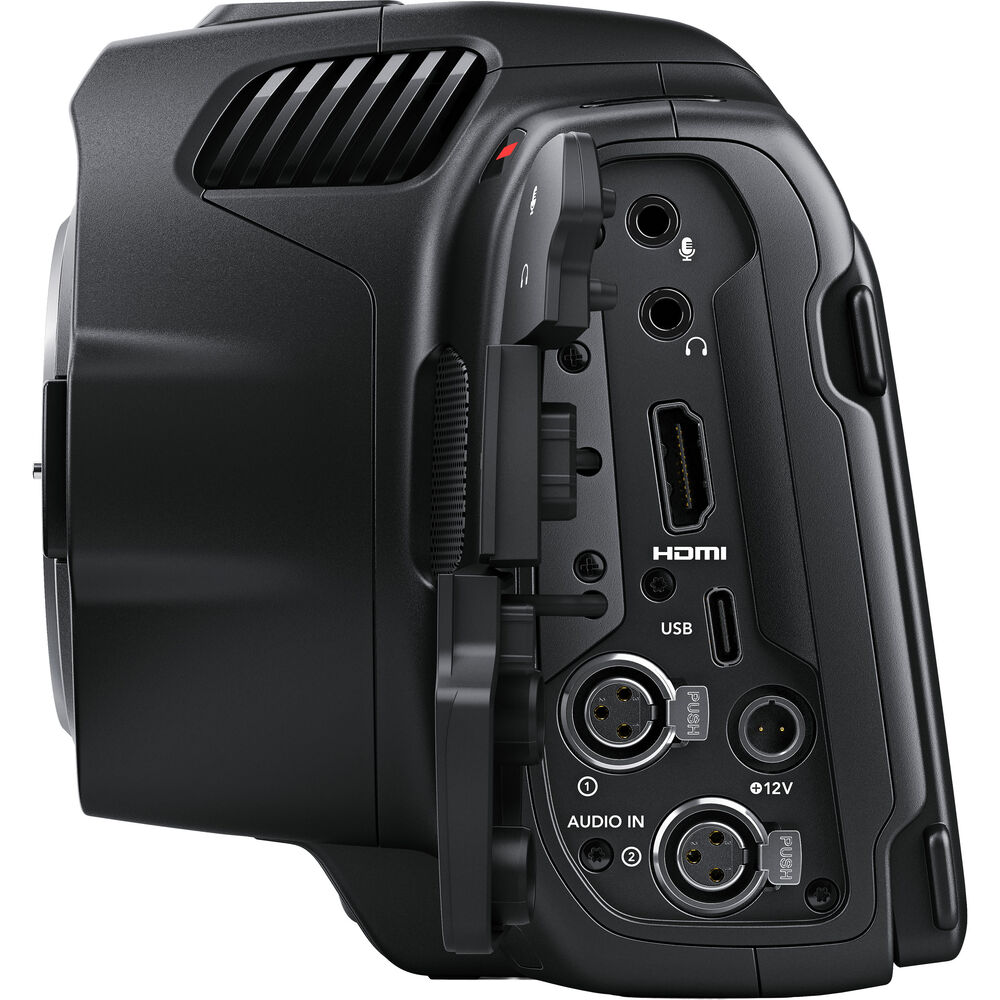

Interface
Media/Memory Card Slot
Slot 1: SD/SDHC/SDXC (UHS-II)Slot 2: CFast
Video I/O
1 x HDMI Output

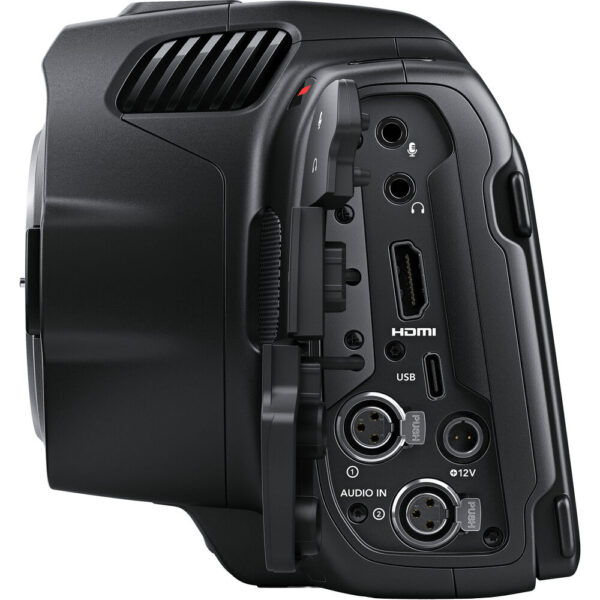

Audio I/O
2 x Mini XLR Mic/Line (+48 V Phantom Power) Input1 x 1/8″ / 3.5 mm TRS Stereo Mic/Line Input1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output
Power I/O
1 x Weipu SF610/S2 (12 to 20 VDC) Input
Other I/O
1 x USB Type-C (USB 3.2 / 3.1 Gen 1) Control/Video Output1 x 1/8″ / 3.5 mm (Timecode) Input (Shared with Mic/Line Input)
Wireless
Bluetooth Control
Global Positioning (GPS, GLONASS, etc.)
None

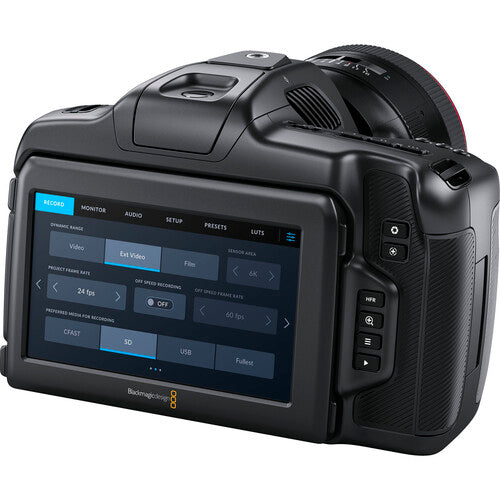

Monitor
Size
5″
Resolution
1920 x 1080
Display Type
Tilting Touchscreen LCD
Type
Optional, Not Included
Focus
Focus Type
Auto and Manual Focus
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Operating Humidity
0 to 90%
General
Battery Type
Sony L-Series
Tripod Mounting Thread
2 x 1/4″-20 Female
Accessory Mount
1 x 1/4″-20 Female
Material of Construction
Carbon Fiber, Polycarbonate

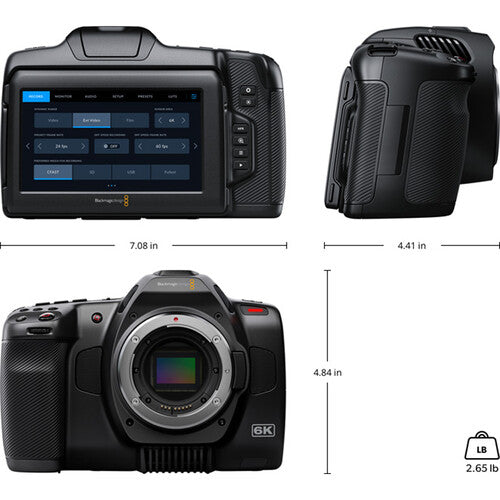

Dimensions (W x H x D)
7.08 x 4.84 x 4.41″ / 17.98 x 12.29 x 11.2 cm
Weight
2.65 lb / 1.20 kg
Packaging Info
Package Weight
4.345 lb
Box Dimensions (LxWxH)
10.1 x 6.9 x 6.9″
