Description

Product Highlights

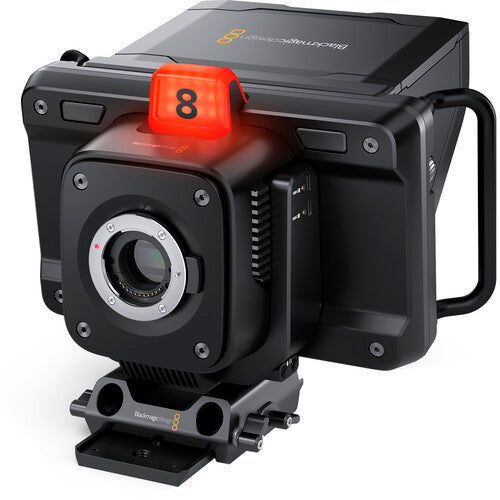

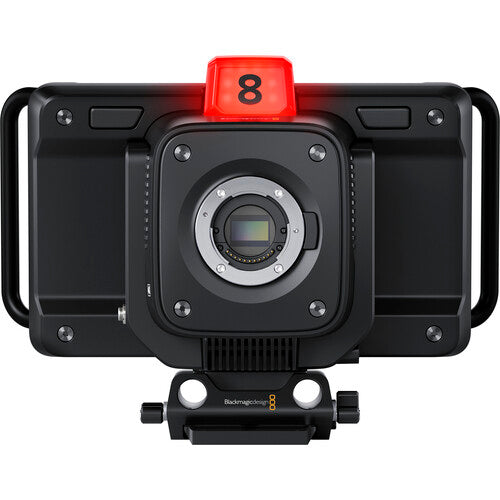

Micro Four Thirds Lens Mount
Capture up to UHD 4K 3840 x 2160p60

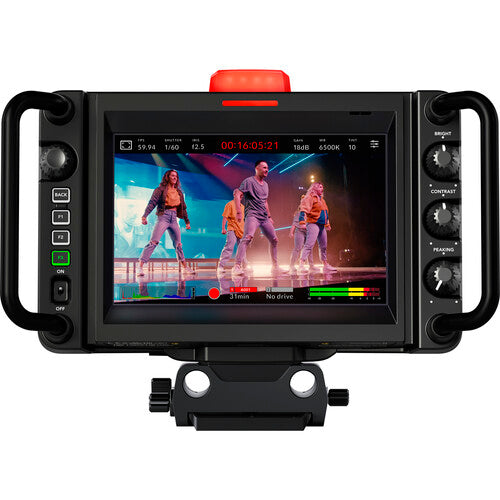

7″ High-Brightness HDR Touchscreen LCD

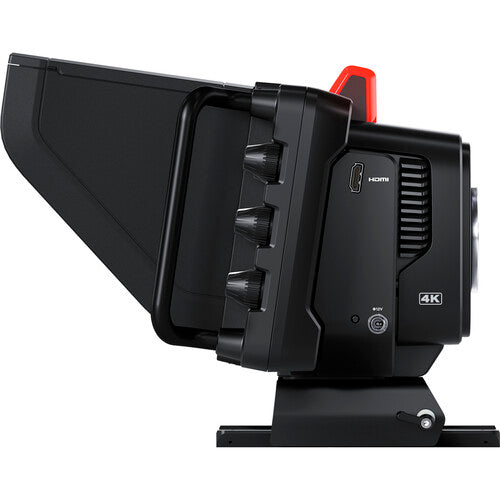

HDMI Video Output Designed for ATEM Mini
Record to External USB Type-C Disks
Records Blackmagic RAW, Up to 25,600 ISO
3.5mm Audio Input, Built-In Mics
Built-In DaVinci Resolve Color Corrector
Large Tally Light
Light Carbon Fiber Polycarbonate Body

Specs
Blackmagic Design Studio Camera 4K Plus Specs
Imaging
Sensor Resolution
Not Specified by Manufacturer
ISO Sensitivity
100 to 25,600
Gain
0 to 18 dB
Signal-to-Noise Ratio
63 dB
Camera
Lens Mount
Micro Four Thirds
Built-In ND Filter
None
Built-In Microphone Type
Stereo
Broadcast System Compatibility
NTSC, PAL
Interfaces
CCU Interface
None
Video Connectors
1 x HDMI Output
Audio Connectors
1 x 1/8″ / 3.5 mm Stereo Mic Level Input1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone Input/Output
Other I/O
2 x USB Type-C USB 3.1 Gen 1 Data, Video Input/Output
Recording
Recording Modes
DNxHD/ProRes:3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Raw Recording
Blackmagic RAW:3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (26 to 190 Mb/s)
Audio Recording
Raw: 2-Channel 24-Bit 48 kHz LPCM Audio
Display
Display Type
Fixed Touchscreen LCD
Size
7″
Resolution
1920 x 1200
EVF
Power
Power Connectors
1 x Barrel (12 VDC) Input
Power Consumption
>46 W
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Operating Humidity
0 to 90%
General
Accessory Mount
2 x 1/4″-20 Female
Tripod Mount
3/8″-16 Female
Dimensions
10.77 x 6.68 x 6.59″ / 27.36 x 16.97 x 16.74 cm (Without Protrusions)
Weight
3.71 lb / 1.68 kg
