Description

Product Highlights
Advanced High-Data Rate De-Embedder
De-Embed Audio from up to 4K SDI Signals

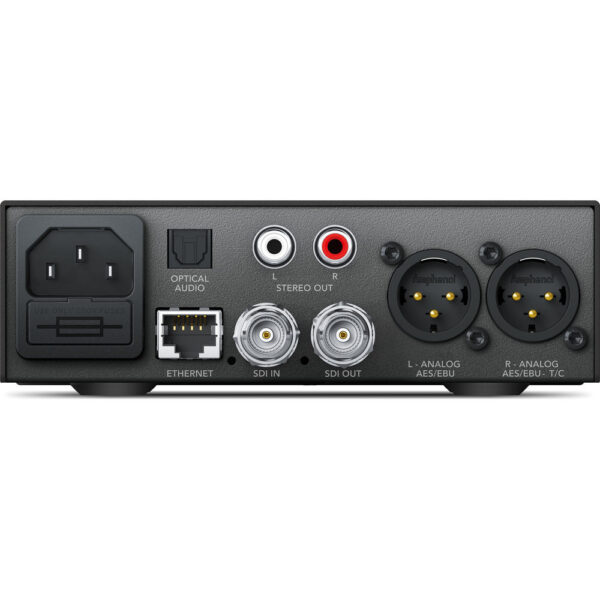

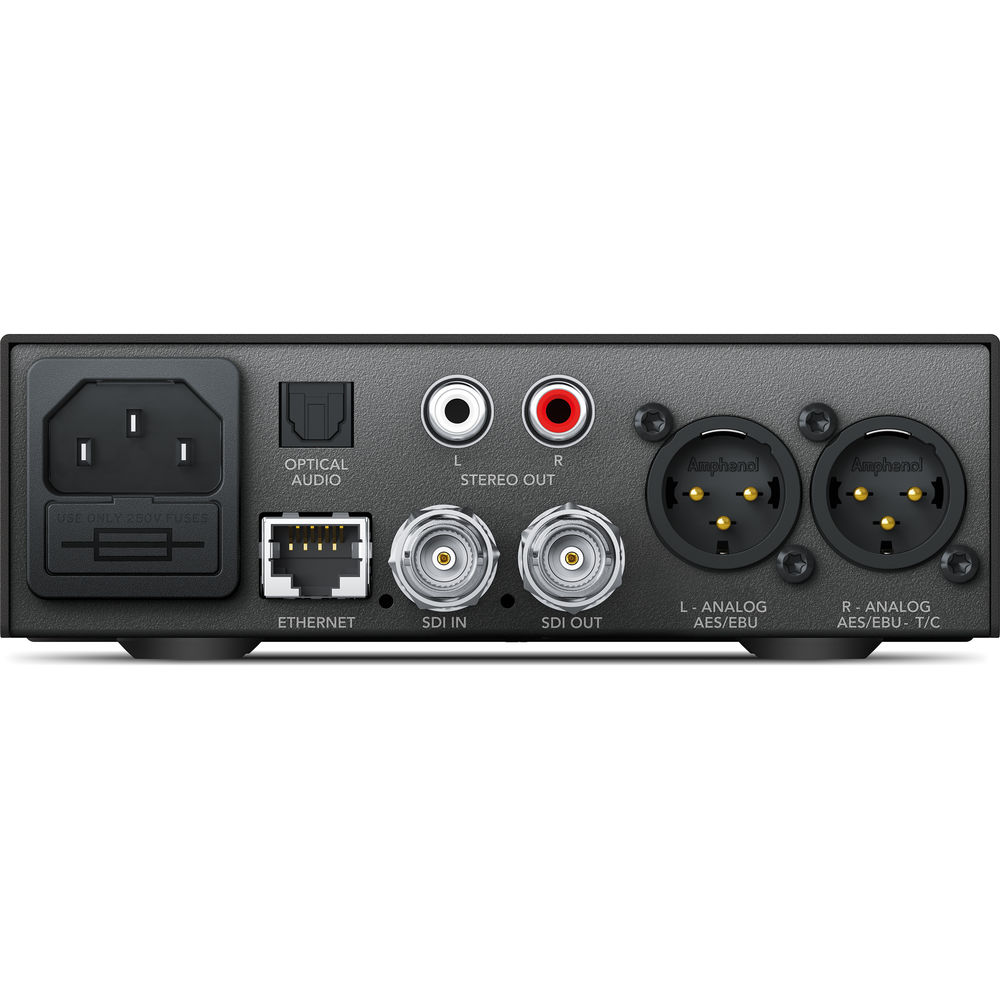

Output via XLR, AES/EBU, RCA, or S/PDIF
12G-SDI Input and Output
Supports up to Full 4K DCI 4096x2160p
XLR Connections Switchable to AES/EBU
Ethernet Port for Remote Control or PoE
Supports Optional LCD Smart Front Panel
Intelligent Thermal Heat Dissipation
3 Units 1U Rack-Mountable in 19″ Rack

Specs
Blackmagic Design Teranex Mini Specs
SDI Video Input
1x 12G-SDI SD/HD/2K/4K auto switching
SDI Video Output
1x 12G-SDI output
Analog Audio Output
2 channels professional balanced analog audio via XLR connectors2 channel unbalanced analog line level via RCA connectorsRight XLR can be configured for timecode output
AES/EBU Audio Output
4 channels professional 110 ohm balanced digital audio via XLR connectorsRight XLR can be configured for timecode output
Optical Audio Output
S/PDIF signal with TOSLINK connector
Multi Rate Support
Automatic switching between SD/HD/2K and 4K
Updates and Configuration
USB or Ethernet
Re-Clocking
Yes
SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
2K Format Support
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
SDI Video Rates
SDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit
SDI Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K
SDI Color Space
REC 601, REC 709
Software Control
Mac OS X and Windows software upgrade via USB and Ethernet
Internal Software Upgrade
Via included updater application
Basic Settings Control
Mini Switches, USB, and Ethernet via free software utility
Power Supply
1x built-in international AC power supply with IEC C14 inletIEC power cable required (not included)90 – 240 VAC input
Power Over Ethernet
Can be powered via 48 VDC using PoE (Power-over-Ethernet)
Power Consumption
15 W
Operational Voltage Range
90 – 240 VAC
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140°F (-20 to 60°C)
Relative Humidity
0 to 90% non-condensing
Dimensions
W x H x D: 5.5 x 1.8 x 6.7″ (14 x 4.6 x 17 cm) (with SDI port included)
Weight
1.3 lb (0.6 kg)
Packaging Info
Package Weight
1.85 lb
Box Dimensions (LxWxH)
8.819 x 7.638 x 2.205″
