Description

Product Highlights
12K Super35 HDR CMOS Sensor
12K 17:9 to 60 fps/12K 2.4:1 to 75 fps
DCI 8K to 120 fps/14 Stops Dynamic Range
User-Changeable PL Lens Mount
4K Super16 up to 220 fps
80MP/frame Blackmagic Raw
Dual CFast or SD Card Recording
USB Type-C Recording to Disk/SSD

Specs

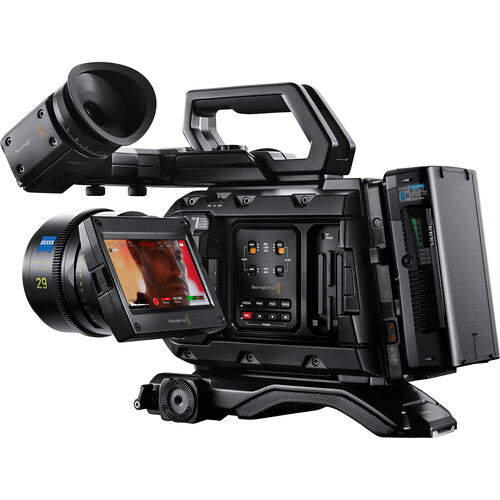

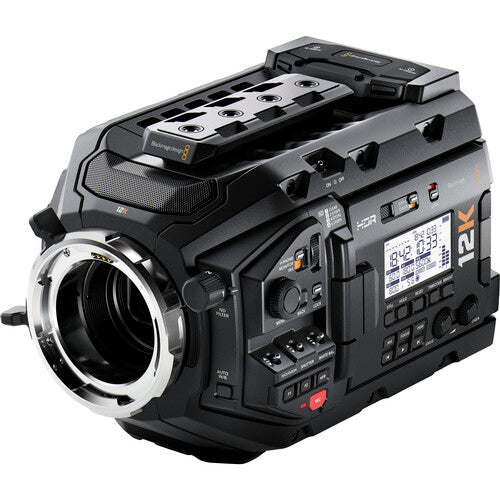

Blackmagic Design URSA Mini Pro 12K PL-Mount Specs
Imaging
Lens Mount
ARRI PL
Interchangeable Lens Mount
Yes
Lens Communication
Yes
Sensor Resolution
Effective: 79.6 Megapixel (12,288 x 6480)
Sensor Type
27.03 x 14.25 mm (Super35) CMOS
Built-In ND Filter
Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
ISO Sensitivity
800 (Native)
Shutter Type
Rolling Shutter
Advertised Dynamic Range
14 Stops
Internal Recording
Raw Recording
Raw 12-Bit:12288 x 6480 at 23.98/24/25/29.97/30/50/59.94/60 fps (72 to 578 MB/s) 11520 x 648 at 23.98/24/25/29.97/30/50/59.94/60 fps 12288 x 5112 at 23.98/24/25/29.97/30/50/59.94/60 fps 7680 x 6408 at 23.98/24/25/29.97/30/50/59.94/60 fps 8192 x 4320 at 23.98/24/25/29.97/30/50/59.94/60 fps (32 to 258 MB/s) 7680 x 4320 at 23.98/24/25/29.97/30/50/59.94/60/120 fps 8192 x 3408 at 23.98/24/25/29.97/30/50/59.94/60/120 fps 5120 x 4272 at 23.98/24/25/29.97/30/50/59.94/60/120 fps 6144 x 3240 at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18 to 145 MB/s) 4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (8 to 65 MB/s) 4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 4096 x 1704 at 23.98/24/25/29.97/30/59.94/60 fps 2560 x 2136 at 23.98/24/25/29.97/30/50/59.94/60 fps
Recording Modes
Not Specified by Manufacturer
Variable Frame Rates
12K: Up to 60 fps12K Anamorphic: Up to 75 fps8K: Up to 120 fpsDCI 4K: Up to 120 fps8K Anamorphic: Up to 160 fps4K Anamorphic: Up to 160 fps6K (Windowed): Up to 120 fpsDCI 4K (Windowed): Up to 240 fps
Audio Recording
2-Channel 24-Bit 48 kHz
Still Image Support
Raw
External Recording
Raw Output
USB:12 x 6480 8192 x 4320 6144 x 3240 4096 x 2160
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-II)
Video Connectors
1 x BNC (12G-SDI) Input1 x BNC (12G-SDI) Output1 x BNC (3G-SDI) Monitor Output
Audio Connectors
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Output1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone Input/Output
Built-In Microphone Type
Stereo
Other I/O
1 x USB Type-C USB 3.1 Gen 21 x USB Type-C Data Input
Size
4.0″
Display Type
Articulating Touchscreen LCD
Secondary Display
Side: Status Display
EVF
Optional, Not Included
Power
Power Connectors
1 x 4-Pin XLR Input1 x 12-Pin Molex Input/Output1 x 4-Pin XLR (12 VDC) Output
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Operating Humidity
0 to 90%
Accessory Mount
4 x 1/4″-20 Female1 x ARRI/Hirth Rosette
Dimensions
9.2 x 5.92 x 5.87″ / 23.37 x 15.04 x 14.91 cm
Weight
5.62 lb / 2.55 kg
Packaging Info
Package Weight
8.25 lb
Box Dimensions (LxWxH)
14.9 x 8.8 x 8″
