Description

Product Highlights

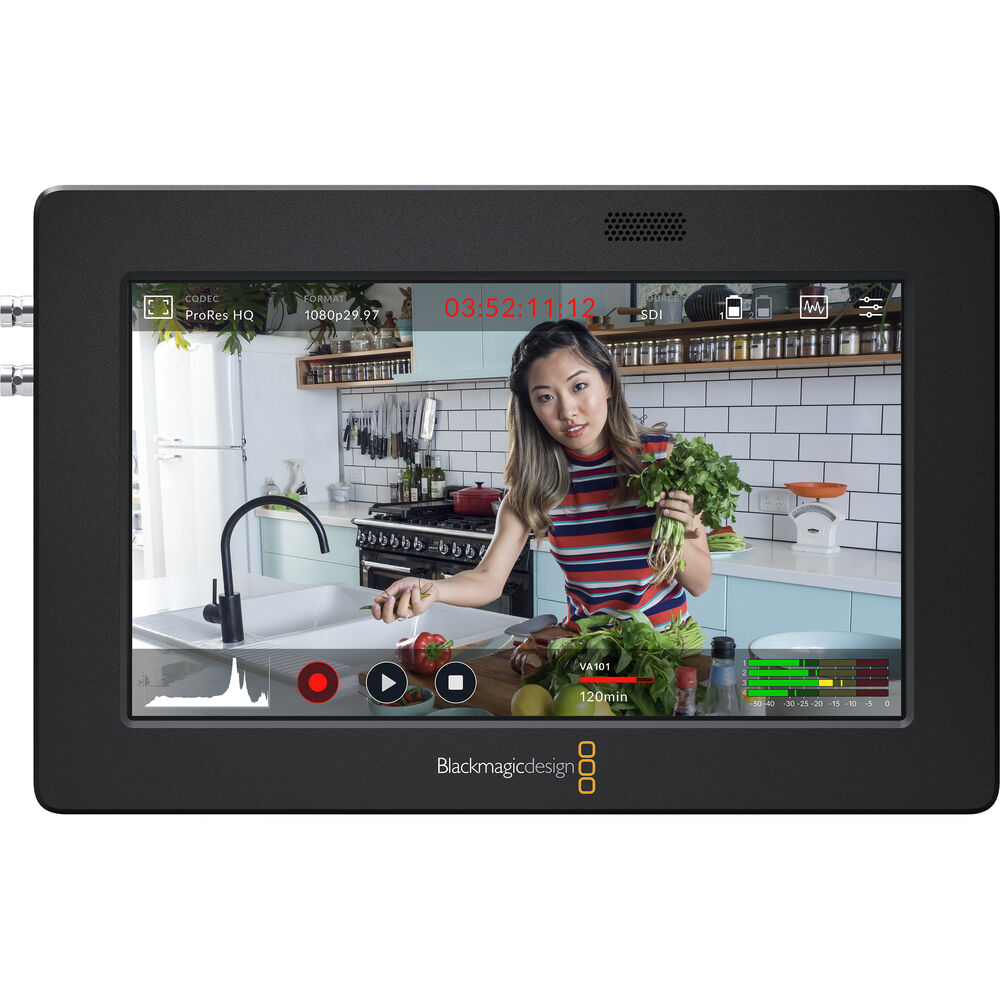

1920 x 1080 5″ Touchscreen LCD
HDMI & 3G-SDI Video Inputs
Records up to 1080p60 Video
Stores to 1 x SDXC/SDHC Memory Card
Loop-Through Video Outputs
Waveform, Vectorscope & Histogram
Focus Peaking, False Color & Zebra
11 x Display Language Options

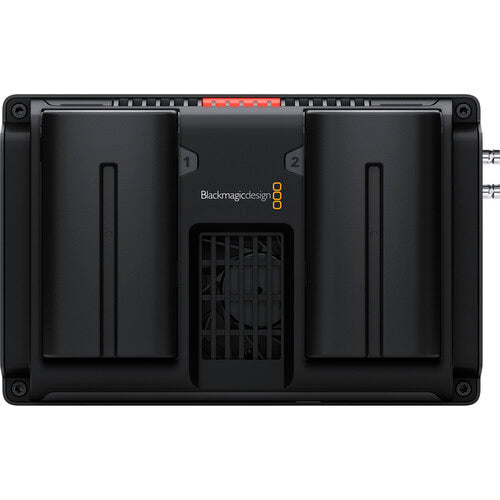

Dual Sony L-Series Type Battery Slots (Batteries not included)
AC Adapter Included
Specs
Blackmagic Design Video Assist Specs
Display
Panel Type
LCD
Display Size
5.0″ / 12.7 cm
Screen Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 135°
Touchscreen
Yes
Maximum Brightness
300 cd/m2
Pixels Per Inch (ppi)
441 ppi
Color Gamut
100% Rec. 709
Real-Time LUT Monitoring
SDR
Image Controls
Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
I/O
Video

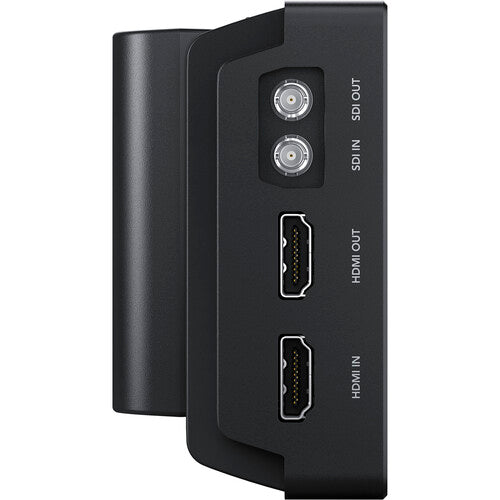

1 x HDMI Type A Input1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Input1 x HDMI Type A Output1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Output
HDCP Support
Yes
Embedded Audio
HDMI: 8-ChannelSDI: 16-Channel
Audio
1 x 3.5 mm Headphone Output
Built-In Speaker
1
Power
1 x Barrel Input
Other I/O
1 x USB Type-C
Card Slot
1 x SD
Wi-Fi
None
Format Support
Video Format
SDI (10-Bit 4:2:2 YUV)1080p: 60/59.94/50/30/29.97/25/24/23.981080PsF: 30/29.97/25/24/23.981080i: 60/59.94/50720p: 60/59.94/50576i: 50480i: 59.94HDMI (10-Bit)1080p: 60/59.94/50/30/29.97/25/24/23.981080i: 60/59.94/50720p: 60/59.94/50576i: 50480i: 59.94
Recording
Pulldown Conversion
None
Camera Trigger
None
Pre-Roll Record
None
Encoding Formats
Up to 1920 x 1080ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fpsDNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks
16
Recording Media
1 x SDXC (UHS-I)
Metadata Tagging
Yes
Timecode Support
SMPTE 12M via Embedded SDI / Embedded HDMI
Phantom Power
None
Power
DC Input Power
12 VDC
Battery Type
2 x L-Series
Mounting
Mounting
6 x 1/4″-20 Female
Environmental
Operating Humidity
0 to 90%
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
General
Material of Construction
Aluminum
Dimensions (W x H x D)
5.83 x 3.54 x 1.44″ / 14.81 x 8.99 x 3.66 cm
Weight
14.46 oz / 410 g
Warranty Length
Limited 1-Year Warranty
Packaging Info
Package Weight
1.96 lb
Box Dimensions (LxWxH)
7.8 x 7.5 x 4.1″
