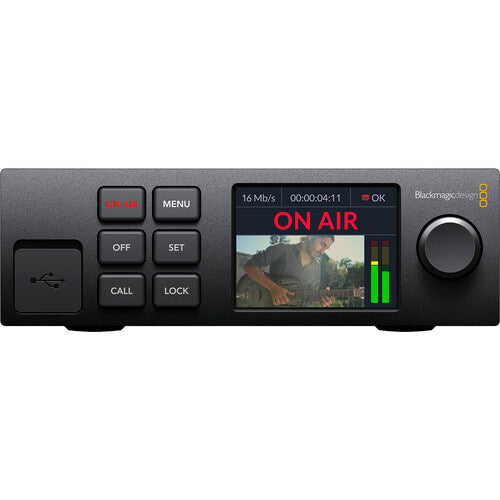

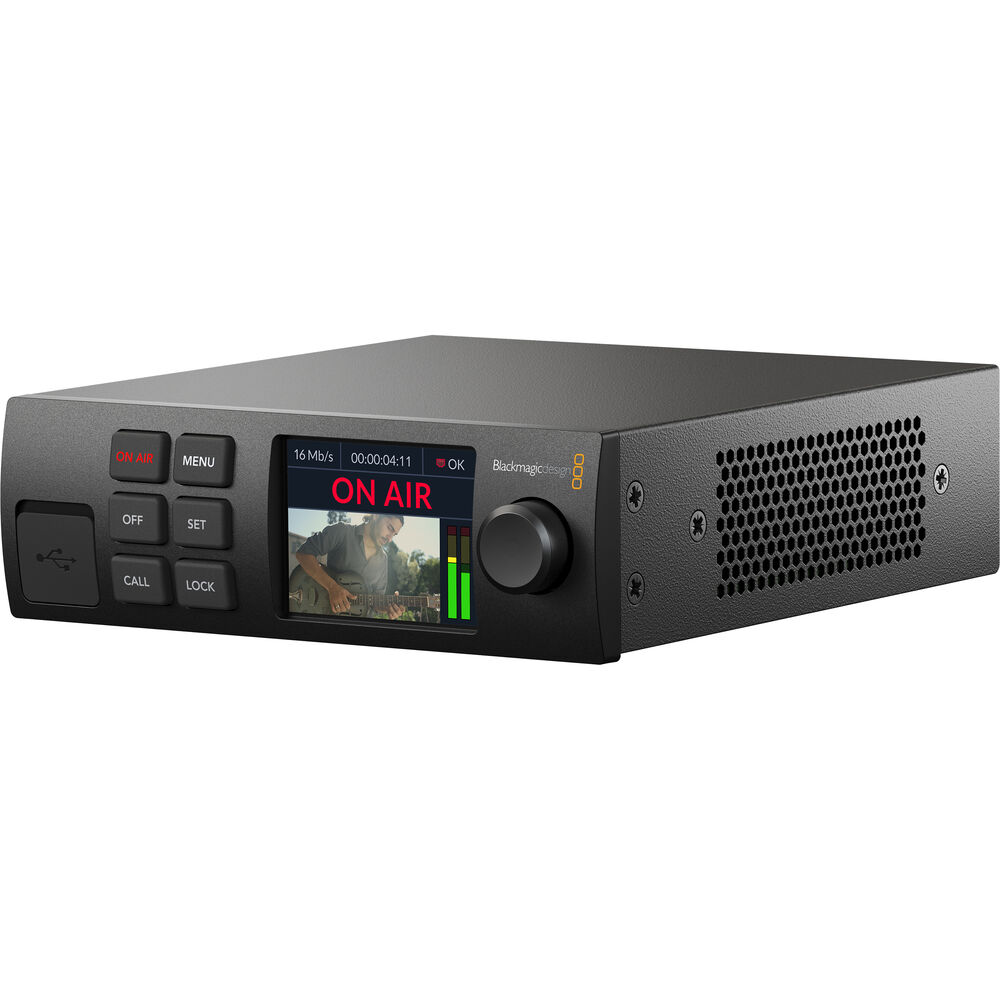

Blackmagic Design We...

Description

Product Highlights
Live Stream SDI Video Source to Internet
Input 12G/6G/3G-SDI Video up to UHD 4K
SDI/HDMI Monitor Output up to 1080p60
Supports H.264/RTMP Streaming Protocol
Use USB Type-C as Webcam or 5G/4G Tether
SDI Loop Output, 10/100/1000 Ethernet
Redundant AC and DC Power Inputs
Mac, Win, Linux & Chromebook Compatible
Works with ATEM Streaming Bridge Option

Specs
Blackmagic Design Web Presenter HD Specs
IP Encoding/Decoding
IP Video
H.264:1280 x 720 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport Protocols
RTMP
Simultaneous Streams
1 Streams
Compatible Services
Facebook Live, Livestream, Skype, Twitch, YouTube Live

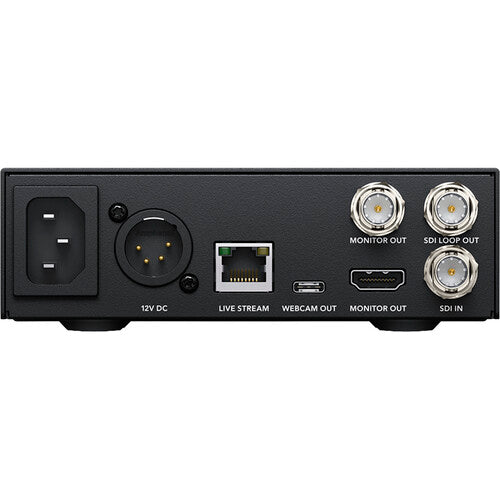

Interfaces
Video Connectors
1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output1 x HDMI Output
Other I/O
1 x RJ45 10/100/1000 Ethernet Input/Output1 x USB Type-C Input
Embedded Audio
SDI/USB Type-C
Power
Power Connector
1 x 4-Pin XLR (12 VDC) Input1 x NEMA 5-15R Input
Power Consumption
Device: 100 to 240 VAC (21 W)
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
0 to 90%
Storage Temperature
-4 to 113°F / -20 to 45°C
General
Display
LCD
Dimensions
6.9 x 5.51 x 1.75″ / 17.5 x 14 x 4.45 cm
Weight
1.66 lb / 0.75 kg
Packaging Info
Package Weight
2.19 lb
Box Dimensions (LxWxH)
8.9 x 7.8 x 2.4″
